Key Features
- 1Achieve high breaking capacity of 150 kA at 415 V. 2、Utilize advanced selective protection with precise response. 3、Integrate metering and communication via ETU320. 4、Simplify installation with a compact, modular design. 5、Ensure reliable protection across diverse applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics (kA): @400V or 415V | 150 | Rated Voltage (V): | 690 |
| Number of Poles: | 3P | Description | 3VA2L160 R100 ETU320 F/3P; 3VA2_160 dimensions; Rated current 100A; Interrupting L:150kA; Trip unit ETU320; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU320 [Electronic LI] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 150 | Interrupting Rating: | L:150kA |
| Rated Current In (A): | 100 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |

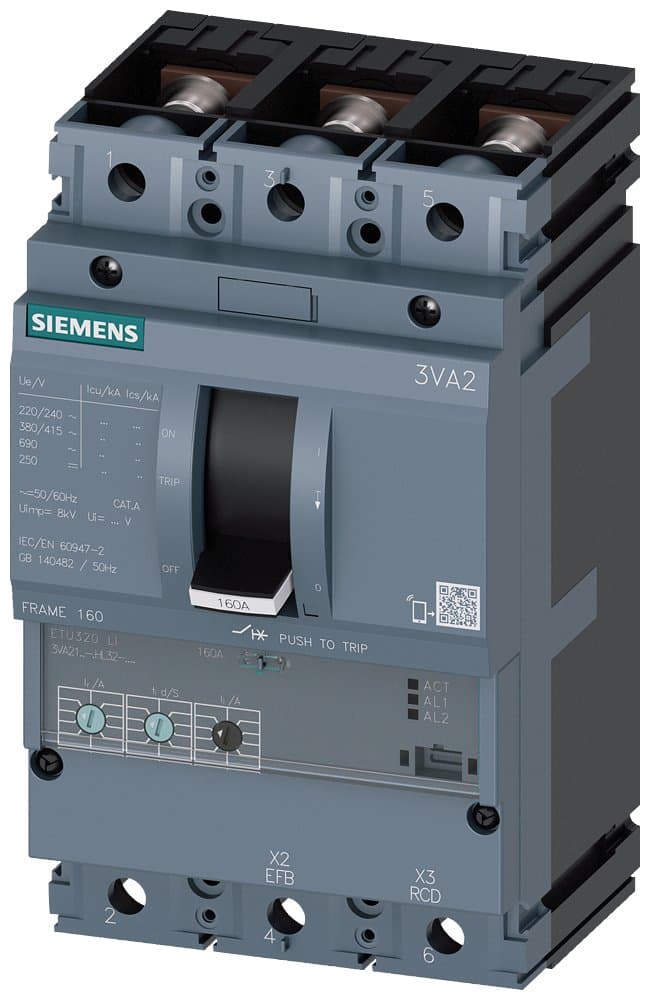

| Model Number | 3VA2110-8HL32-0AA0 |
Specifications may be subject to change without notice
