Key Features
- 1Deliver 55 kA breaking capacity at 415V for maximum line protection. 2、Utilize ETU850 with LSI functions for comprehensive electrical safety. 3、Configure in a robust 3-pole design with a 160A rated current. 4、Adjust overload protection from 63A to 160A for precise calibration. 5、Integrate with a wide range of accessories for customized functionality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M160 R160 ETU850 F/3P; 3VA2_160 Dimensions; Rated Current 160A; Interrupting M:55kA; Trip Unit ETU850; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850【Electronic LSI+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |

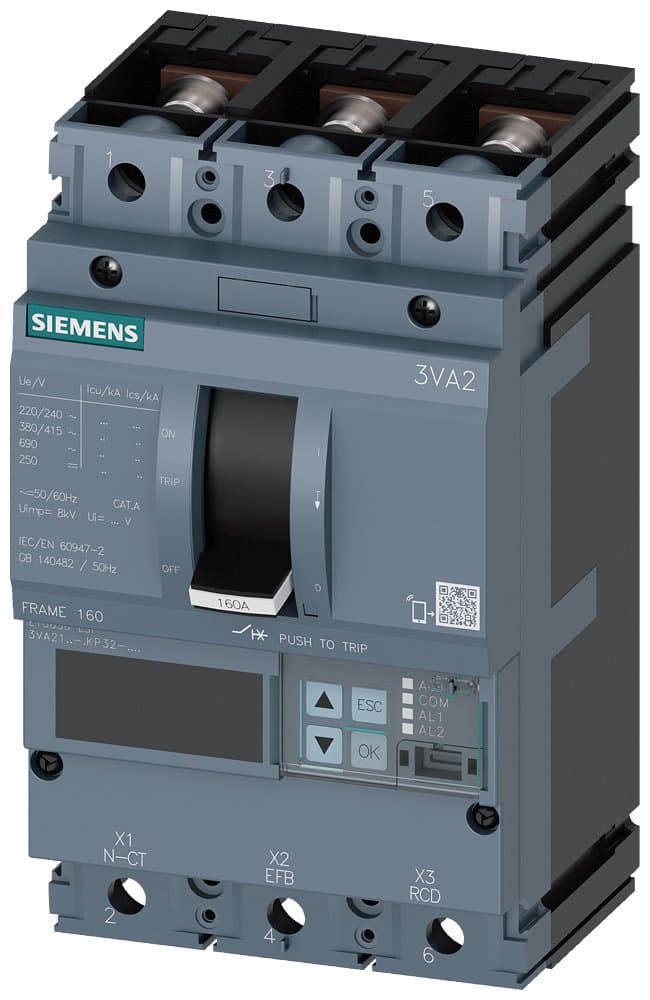

| Model Number | 3VA2116-5KP32-0AA0 |
Specifications may be subject to change without notice
