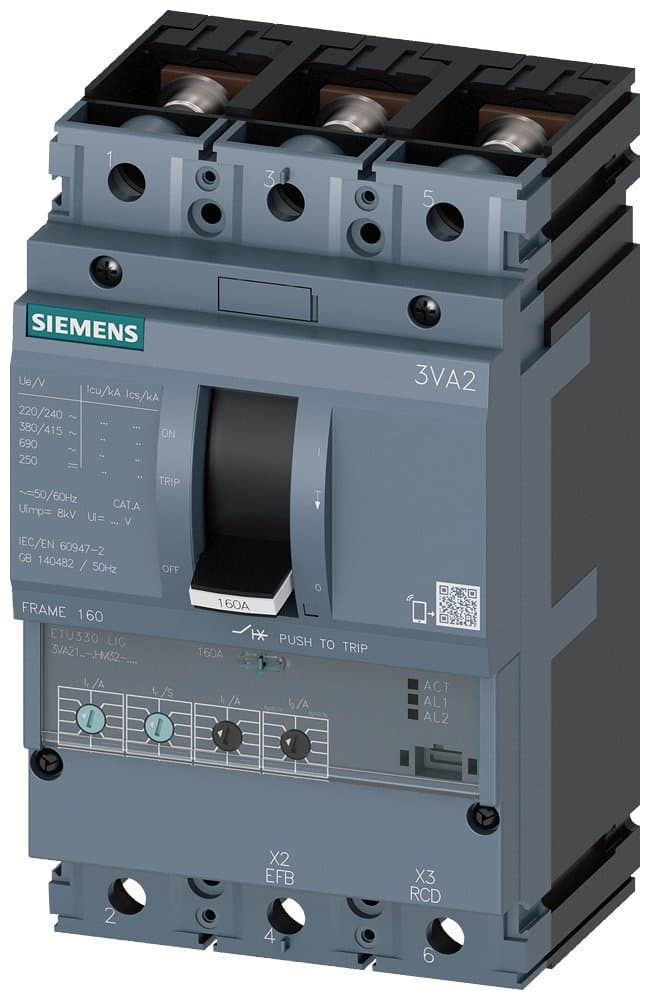

3VA2116-6HM32-0AA0
Product ID:102814
Updated: 2026/7/3
Key Features
- 1Ensure reliable circuit protection with a high breaking capacity of 85 kA at 415V.
- 2Achieve precise fault detection using the advanced electronic trip unit (ETU330).
- 3Safeguard your operations with robust line protection and LIG features.
- 4Utilize the 160A 3-pole design for versatile industrial applications.
- 5Meet international safety standards with full IEC compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H160 R160 ETU330 F/3P; 3VA2_160 dimensions; Rated current 160A; Interrupting rating H:85kA; Trip unit ETU330; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU330【Electronic LIG】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2116-6HM32-0AA0 |
Specifications may be subject to change without notice
