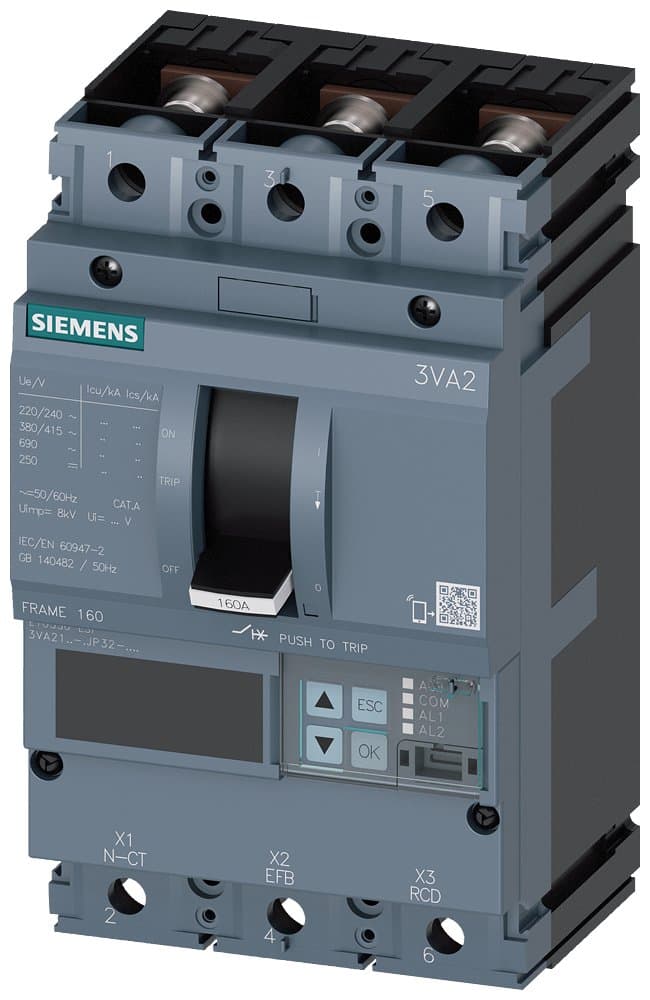

3VA2116-6JP32-0AA0
Product ID:104476
Updated: 2026/7/3
Key Features
- 1Achieve high breaking capacity of 85 kA at 415 V.
- 2Utilize robust 3-pole design with IEC Frame 160.
- 3Benefit from precise line protection via ETU550 and LSI technology.
- 4Configure overload protection from 63 A to 160 A.
- 5Rely on durable molded case construction for longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H160 R160 ETU550 F/3P; 3VA2_160 dimensions; Rated current 160A; Interrupting rating H:85kA; Trip unit ETU550; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550【Electronic LSI+LCD】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2116-6JP32-0AA0 |
Specifications may be subject to change without notice
