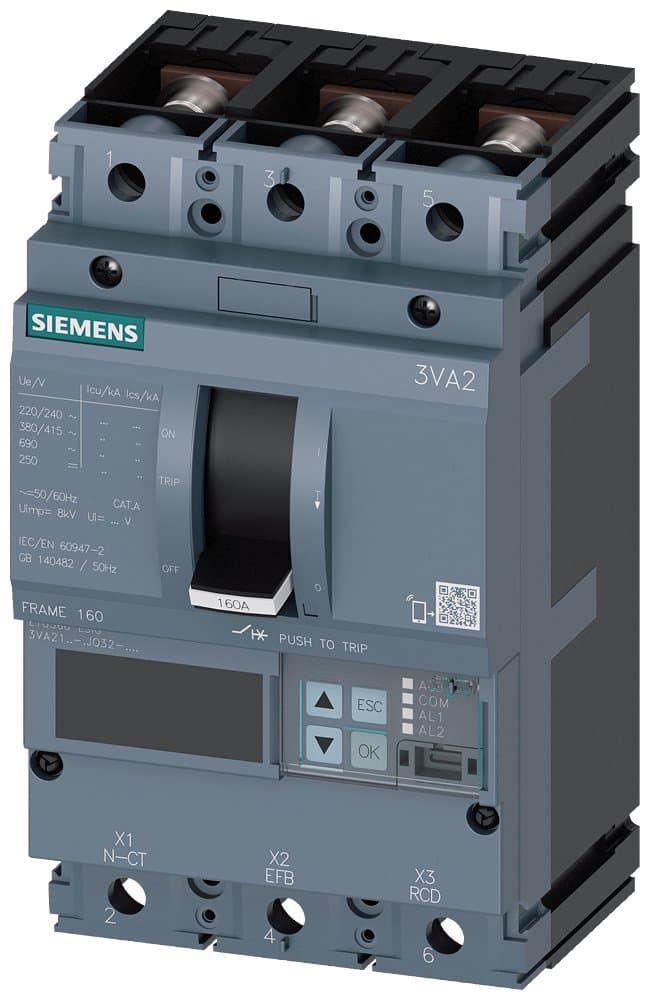

3VA2116-6JQ32-0AA0
Product ID:101157
Updated: 2026/4/3
Key Features
- 1Provide reliable line protection with effective overload and short-circuit shutdown. 2、Deliver robust performance with a high breaking capacity of Icu=85kA at 415V. 3、Ensure comprehensive safety for three-phase industrial applications. 4、Offer precise overload protection adjustable from 63A to 160A. 5、Simplify installation with a fixed mount design for seamless panel integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H160 R160 ETU560 F/3P; 3VA2_160 dimensions; Rated current 160A; Interrupting rating H:85kA; Trip unit ETU560; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560【Electronic LSIG+LCD】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2116-6JQ32-0AA0 |
Specifications may be subject to change without notice
