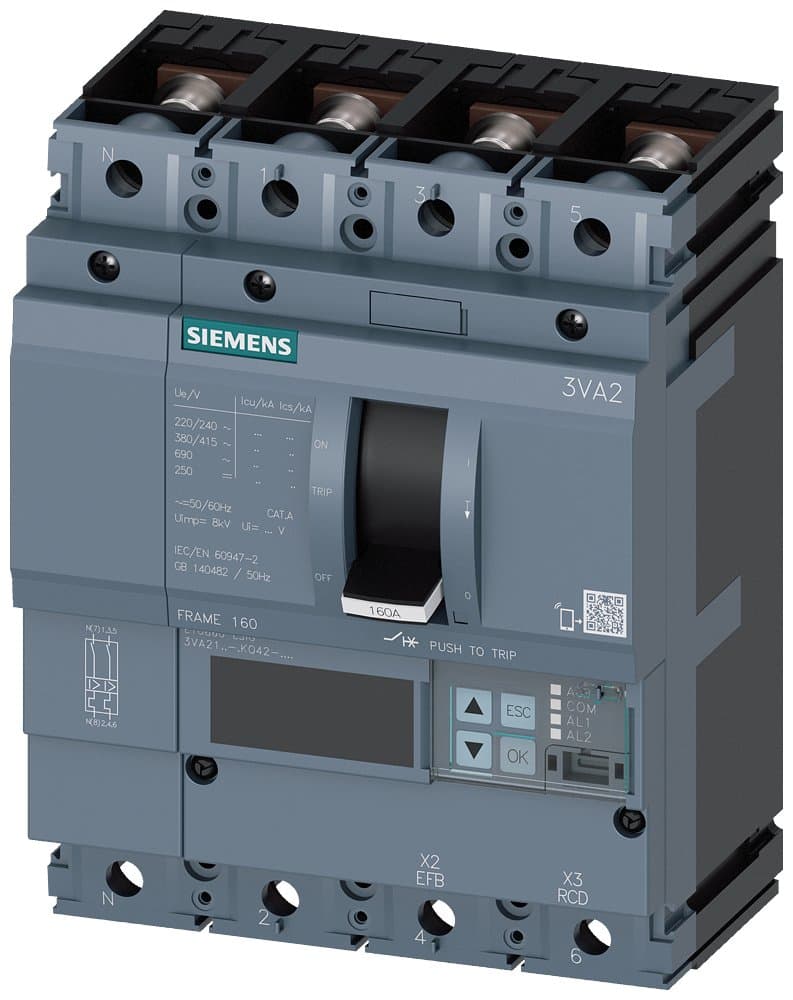

3VA2116-7KQ42-0AA0
Product ID:216859
Updated: 2026/6/25
Key Features
- 1Deliver high breaking capacity up to 110 kA at 415 V.
- 2Provide advanced line protection with ETU860 and LSIG.
- 3Enable flexible communication for system integration.
- 4Feature a compact design with adjustable parameters.
- 5Ensure reliable operation from -25°C to 70°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2C160 R160 ETU860 F/4P; 3VA2_160 dimensions; Rated Current 160A; Interrupting C:110kA; Trip Unit ETU860; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860【Electronic LSIG+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2116-7KQ42-0AA0 |
Specifications may be subject to change without notice
