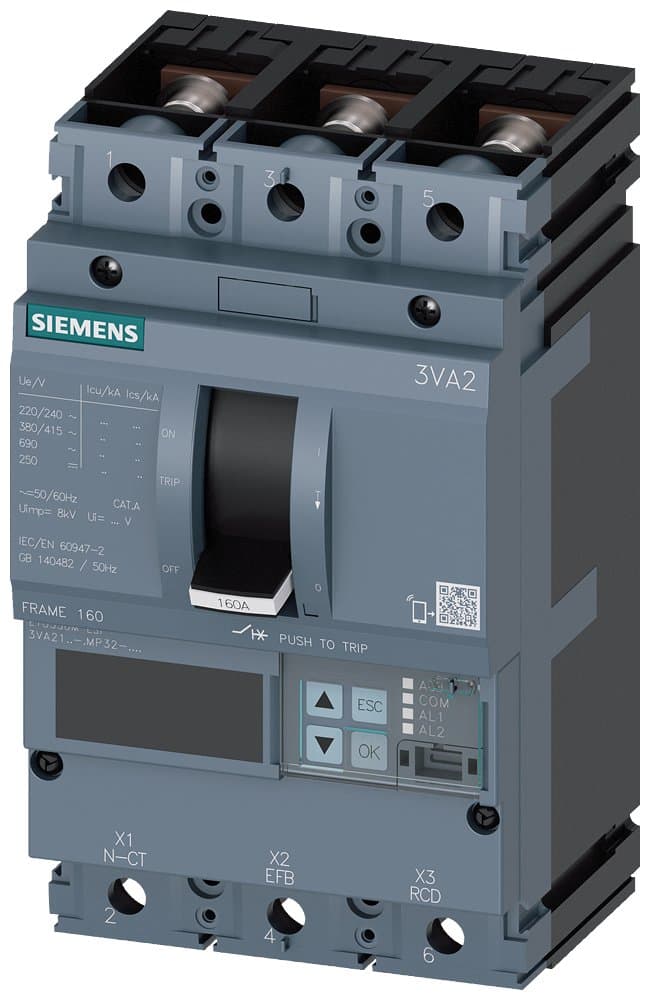

3VA2163-5MP32-0AA0
Product ID:226319
Updated: 2026/7/8
Key Features
- 1Ensure reliable protection with a high breaking capacity of 55 kA at 415 V.
- 2Protect motors comprehensively using the integrated ETU550M electronic trip unit.
- 3Adjust overload protection from 25A to 63A for precise application matching.
- 4Save space with the compact and robust IEC Frame 160 design.
- 5Withstand harsh industrial environments thanks to durable LSI technology construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics (kA): @400V or 415V | 55 | Rated Voltage (V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M160 R63 ETU550M F/3P; 3VA2_160 dimensions; Rated current 63A; Interrupting rating M: 55kA; Trip unit ETU550M; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU550M [Motor Protection LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
| Rated Current In (A): | 63 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2163-5MP32-0AA0 |
Specifications may be subject to change without notice
