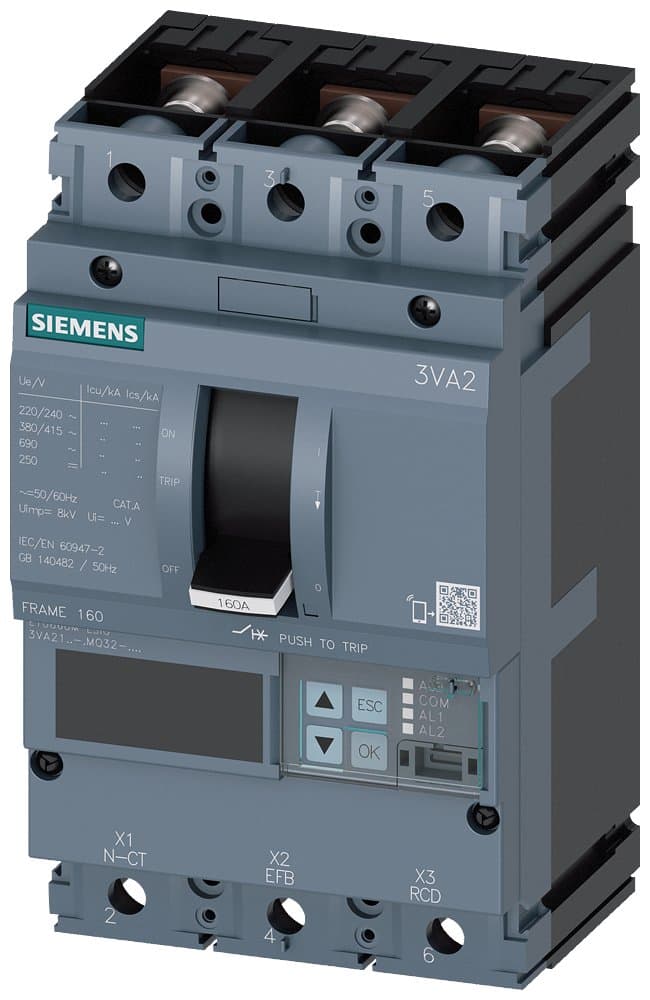

3VA2163-7MQ32-0AA0
Product ID:226911
Updated: 2026/4/3
Key Features
- 1Ensure high 110kA breaking capacity at 415V for maximum safety. 2、Protect motors reliably with advanced ETU860M and LSIG technology. 3、Utilize the durable IEC frame 160 design for longevity. 4、Benefit from a comprehensive 12-month warranty from delivery. 5、Deploy in demanding industrial applications for efficient operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C160 R63 ETU860M F/3P; 3VA2_160 Dimensions; Rated Current 63A; Interrupting Rating C:110kA; Trip Unit ETU860M; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860M【Motor Protection, LSIG+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 63 | Specifications: | 160【1-160A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2163-7MQ32-0AA0 |
Specifications may be subject to change without notice
