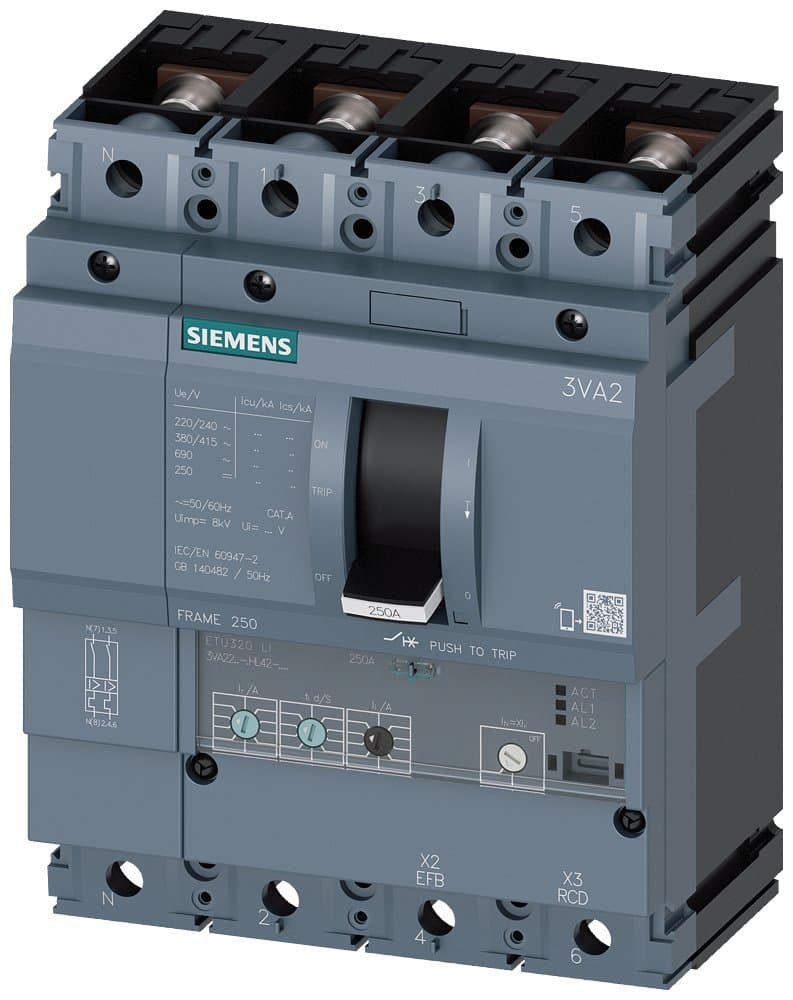

3VA2216-5HL42-0AA0
Product ID:126502
Updated: 2026/7/10
Key Features
- 1Deliver up to 55 kA at 415 V AC for robust short-circuit protection.
- 2Ensure precise tripping with dynamic instantaneous short-circuit range and high selectivity.
- 3Collect and transmit energy data via Electronic Trip Units for efficient management.
- 4Feature compact 70 mm cover size for easy installation and minimal space usage.
- 5Support fieldbus communication systems for seamless integration and monitoring.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2M250 R160 ETU320 F/4P; 3VA2_250 dimensions; Rated Current 160A; Interrupting Rating M:55kA; Trip Unit ETU320; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU320 [Electronic Type LI] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 160 | Specifications: | 250 [160-250A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2216-5HL42-0AA0 |
Specifications may be subject to change without notice
