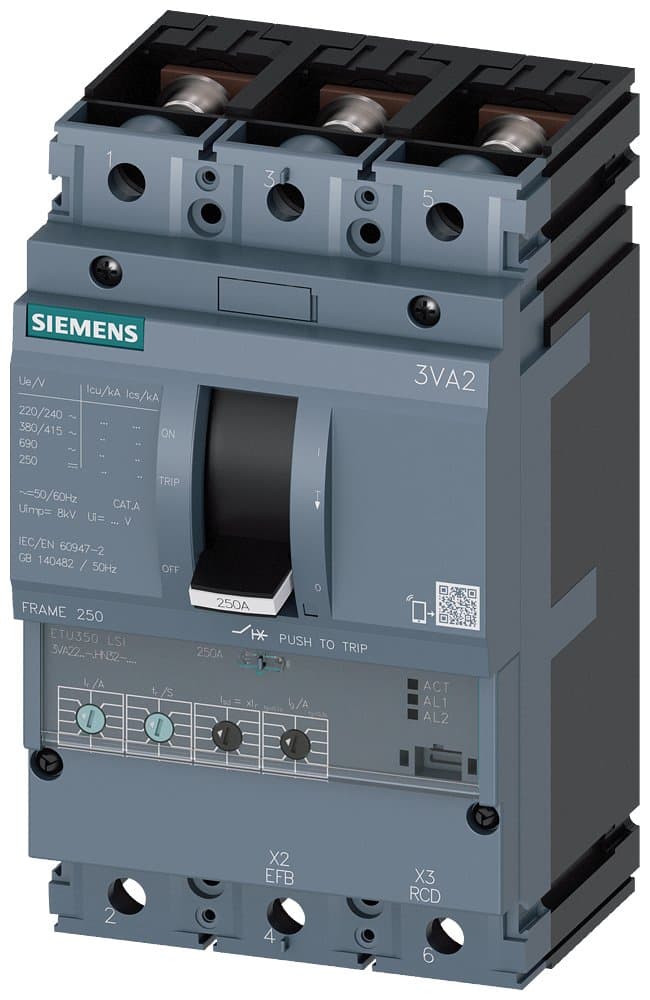

3VA2216-5HN32-0AA0
Product ID:225382
Updated: 2026/4/3
Key Features
- 1Ensure reliable short-circuit protection with 55 kA at 415 V breaking capacity. 2、Achieve comprehensive line protection using advanced ETU350 and LSI technology. 3、Simplify installation in various setups with a compact and versatile design. 4、Monitor system health in real-time via an integrated display for critical values. 5、Enhance functionality easily with modular, easy-to-fit internal accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M250 R160 ETU350 F/3P; 3VA2_250 dimensions; Rated Current 160A; Interrupting M:55kA; Trip Unit ETU350; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350【Electronic LSI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 160 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2216-5HN32-0AA0 |
Specifications may be subject to change without notice
