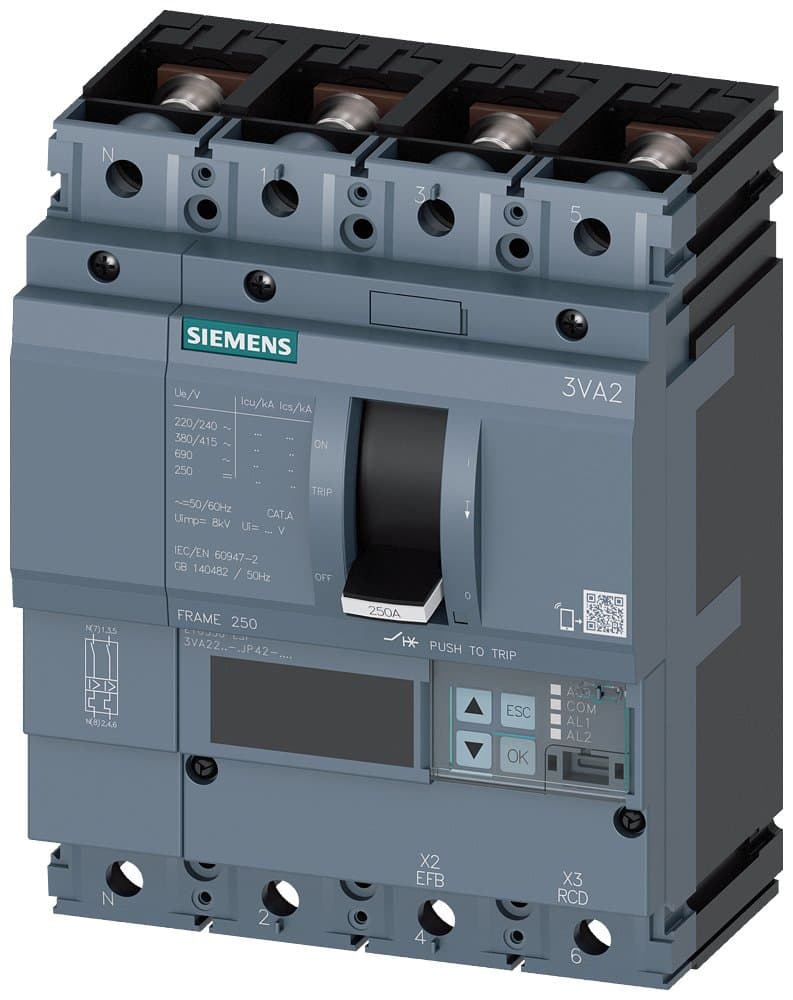

3VA2216-5JP42-0AA0
Product ID:98817
Updated: 2026/7/6
Key Features
- 1Achieve high breaking capacity up to 55 kA at 415 V.
- 2Ensure selective protection for precise fault tripping.
- 3Monitor real-time energy data with integrated metering.
- 4Save space with a compact, fixed-mounting design.
- 5Simplify installation using modular, easy-to-fit accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage (V) | 690 |
| Number of Poles | 4P | Description | 3VA2M250 R160 ETU550 F/4P; 3VA2_250 dimensions; Rated current 160A; Interrupting rating M:55kA; Trip unit ETU550; |
| Mounting Method | F: Fixed | Trip Unit (Reset and select trip unit if not listed) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating | M:55kA |
| Rated Current In(A) | 160 | Specifications | 250 [160-250A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2216-5JP42-0AA0 |
Specifications may be subject to change without notice
