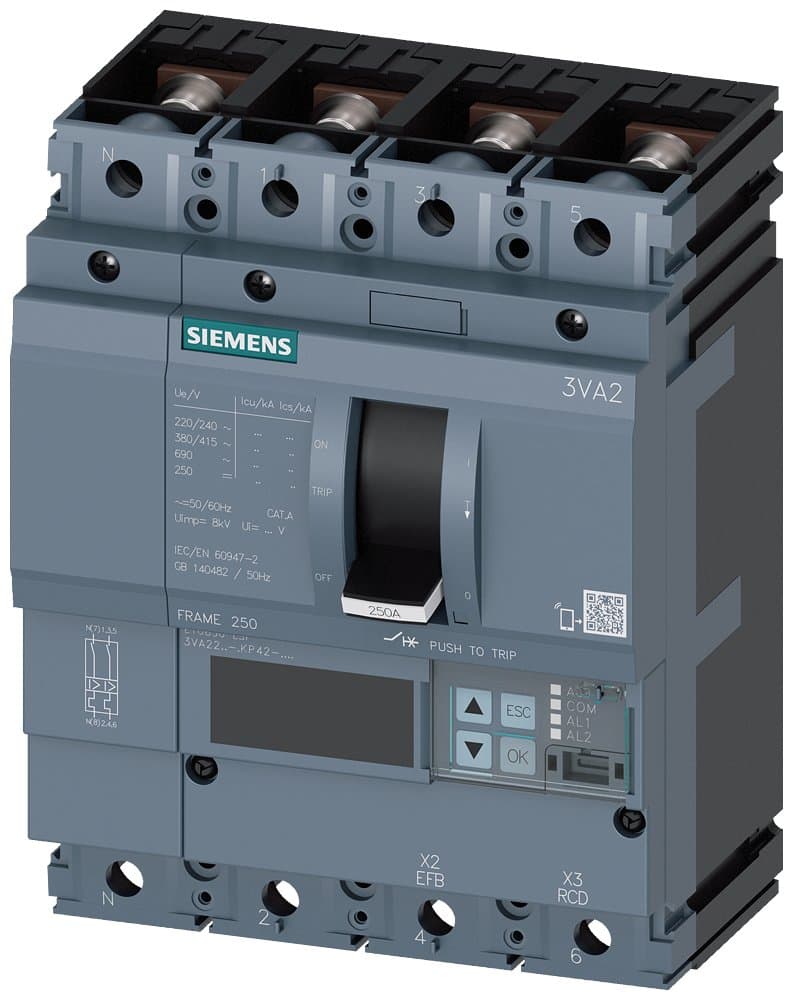

3VA2216-6KP42-0AA0
Product ID:107728
Updated: 2026/7/3
Key Features
- 1Deliver high breaking capacity up to 70 kA at 415 V.
- 2Simplify installation with a compact, standardized design.
- 3Enable diverse functions using modular internal accessories.
- 4Ensure uniform upgrades across all 3VA circuit breakers.
- 5Achieve selective protection with a 1:2.5 operational current interval.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA) @400V or 415V | 85 | Rated Voltage (V) | 690 |
| Number of Poles | 4P | Description | 3VA2H250 R160 ETU850 F/4P; 3VA2_250 dimensions; Rated current 160A; Interrupting rating H:85kA; Trip unit ETU850; |
| Mounting Method | F: Fixed | Trip Unit (Reset and select trip unit if not listed) | ETU850 [Electronic LSI + LCD + Mea] |
| Rated Ultimate Breaking Capacity Icu(kA) @400V or 415V | 85 | Interrupting Rating | H:85kA |
| Rated Current In(A) | 160 | Specifications | 250 [160-250A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2216-6KP42-0AA0 |
Specifications may be subject to change without notice
