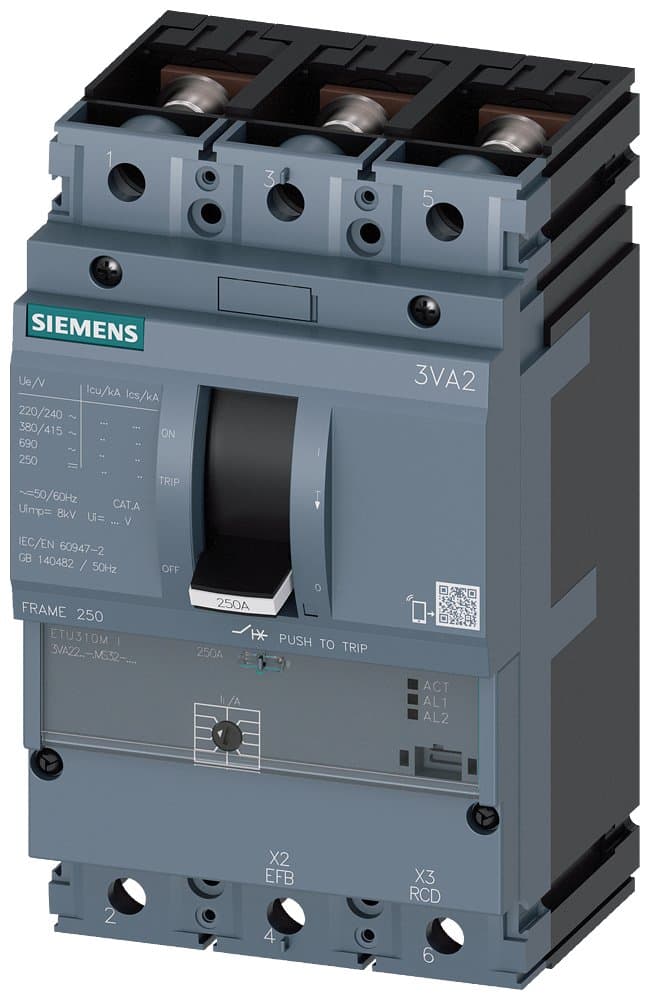

3VA2220-7MS32-0AA0
Product ID:148800
Updated: 2026/4/15
Key Features
- 1Ensure safety with a high breaking capacity of 110 kA at 415 V. 2、Protect motors comprehensively using a 3-pole configuration. 3、Enhance control with integrated starter protection via ETU310M. 4、Rely on robust IEC Frame 250 for demanding industrial use. 5、Achieve reliable performance in tough electrical environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C250 R200 ETU310M F/3P; 3VA2_250 dimensions; Rated current 200A; Interrupting rating C:110kA; Trip unit ETU310M; |
| Mounting Method: | F: Fixed | Trip Unit: (If not in the list, click reset, select trip unit first) | ETU310M【Electronic Only Short Circuit Protection, I adjustable】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2220-7MS32-0AA0 |
Specifications may be subject to change without notice
