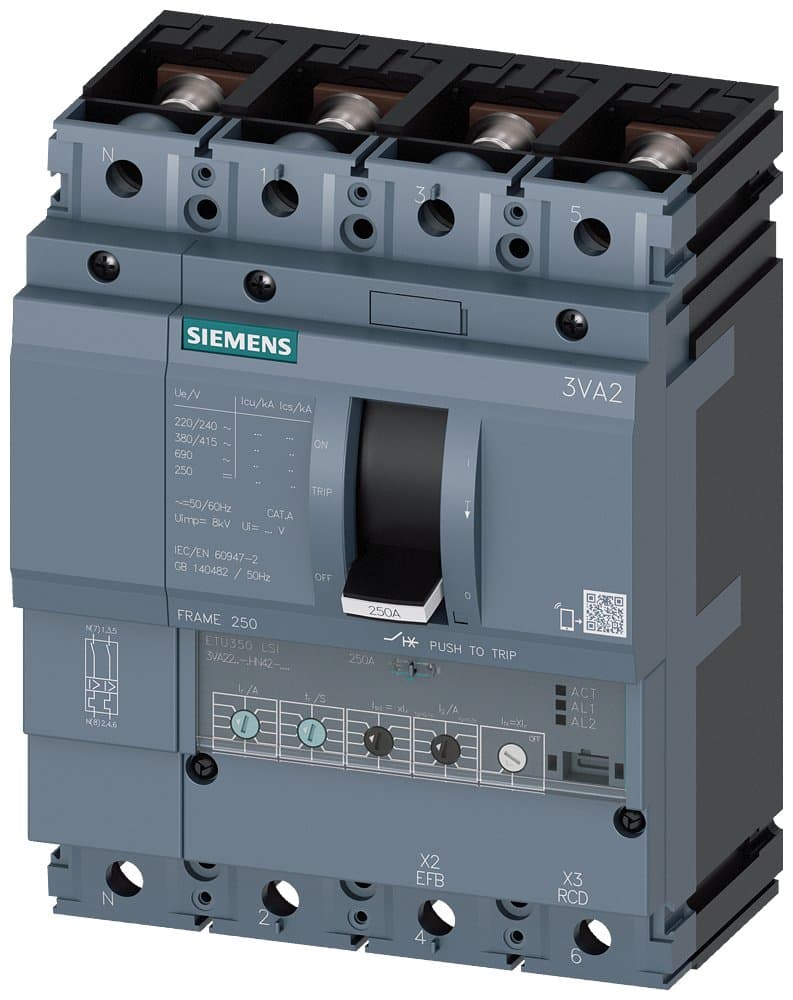

3VA2225-5HN42-0AA0
Product ID:221502
Updated: 2026/6/19
Key Features
- 1Achieve high breaking capacity up to 55 kA at 415 V.
- 2Ensure selective protection in rated operational current interval.
- 3Integrate metering for precise energy management.
- 4Enable advanced communication via ETU350 and LSI.
- 5Simplify installation with compact, modular design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2M250 R250 ETU350 F/4P; 3VA2_250 dimensions; Rated current 250A; Interrupting rating M:55kA; Trip unit ETU350; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350【Electronic LSI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2225-5HN42-0AA0 |
Specifications may be subject to change without notice
