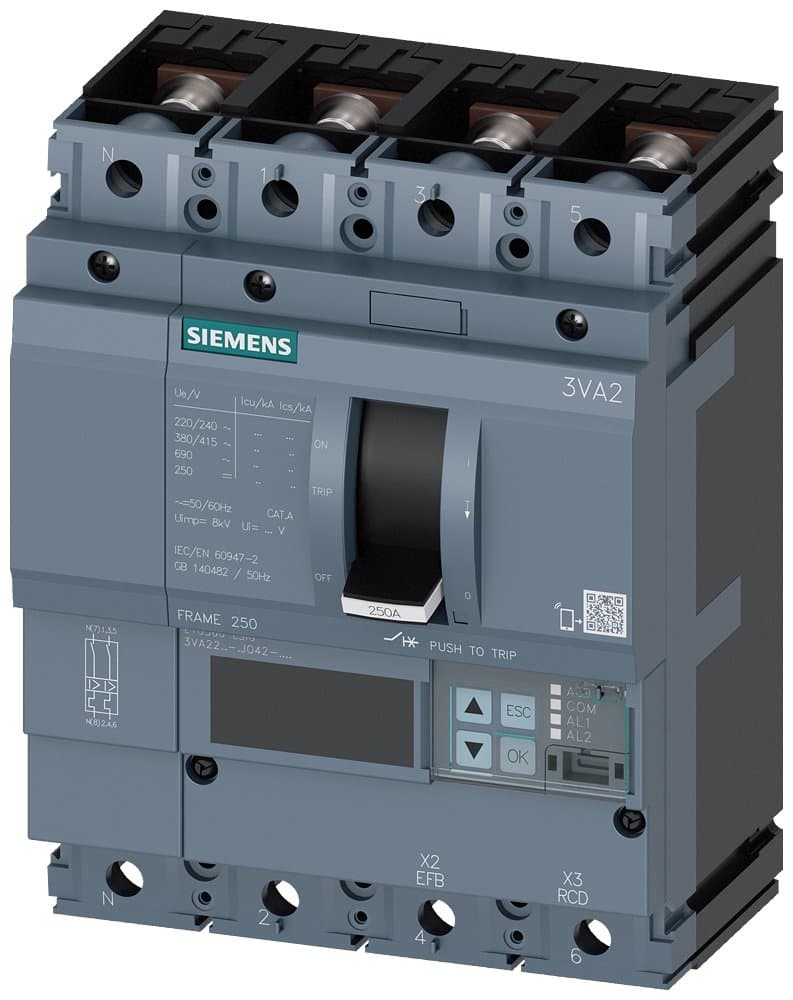

3VA2225-6JQ42-0AA0
Product ID:224686
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity of 85 kA at 415 V for maximum safety. 2、Enable selective protection for precise and efficient system operation. 3、Integrate metering functions for real-time energy data collection. 4、Utilize compact dimensions with flexible mounting options. 5、Customize functionality with a modular design and diverse accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2H250 R250 ETU560 F/4P; 3VA2_250 dimensions; Rated current 250A; Interrupting rating H:85kA; Trip unit ETU560; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560【Electronic LSIG+LCD】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2225-6JQ42-0AA0 |
Specifications may be subject to change without notice
