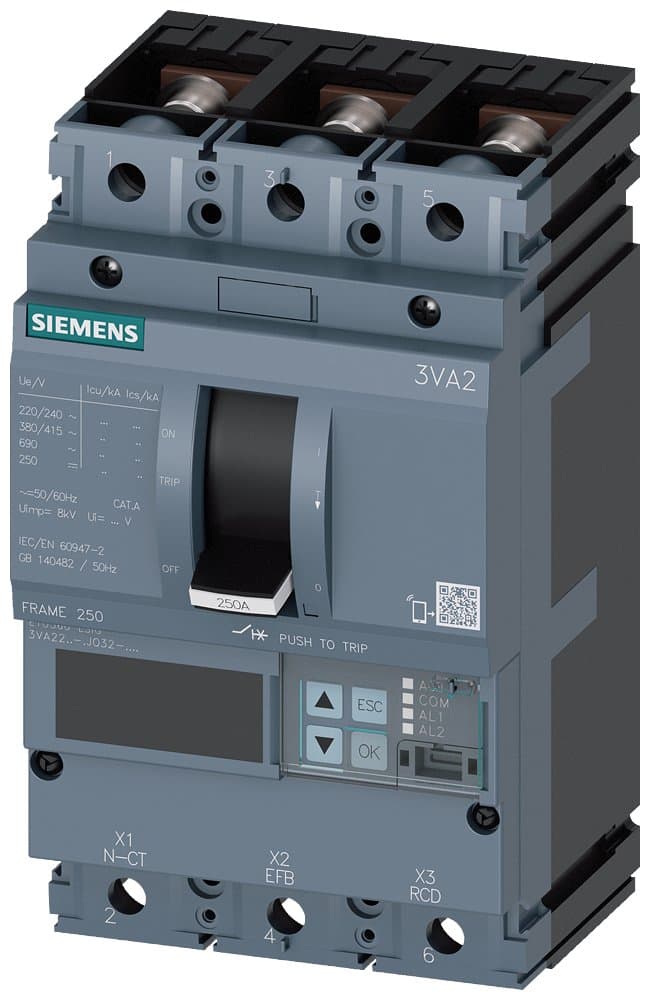

3VA2225-7JQ32-0AA0
Product ID:128745
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity of 110 kA at 415 V AC. 2、Enable selective protection with a dynamic short-circuit range. 3、Integrate metering for energy data collection and transmission. 4、Utilize compact dimensions with multiple mounting technology options. 5、Simplify upgrades with a modular design and easy-fit accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C250 R250 ETU560 F/3P; 3VA2_250 dimensions; Rated Current 250A; Interrupting Rating C:110kA; Trip Unit ETU560; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560【Electronic LSIG+LCD】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2225-7JQ32-0AA0 |
Specifications may be subject to change without notice
