Key Features
- 1Deliver advanced protection with thermal-magnetic trip units and selective response.
- 2Ensure reliable operation with high breaking capacities from 55 kA to 150 kA.
- 3Enhance flexibility via a modular design and wide range of internal accessories.
- 4Facilitate energy management with ETUs that collect and transmit data.
- 5Receive comprehensive Siemens support from planning to commissioning.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 150 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2L250 R250 ETU860 F/3P; 3VA2_250 dimensions; Rated Current 250A; Interrupting L:150kA; Trip Unit ETU860; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860【Electronic LSIG+LCD+Measurement】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 150 | Interrupting Rating: | L:150kA |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |

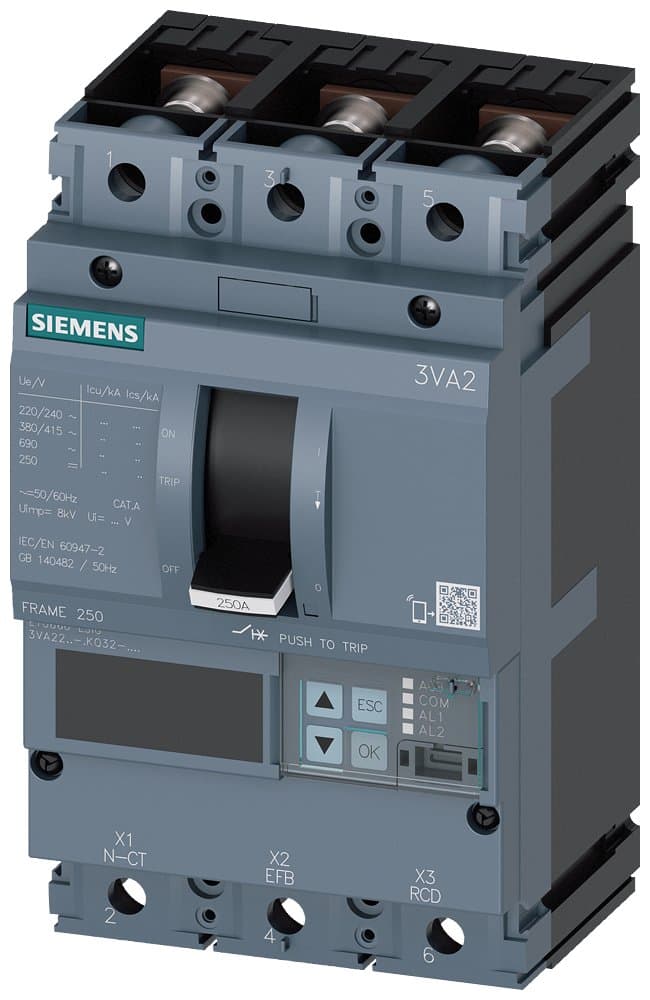

| Model Number | 3VA2225-8KQ32-0AA0 |
Specifications may be subject to change without notice
