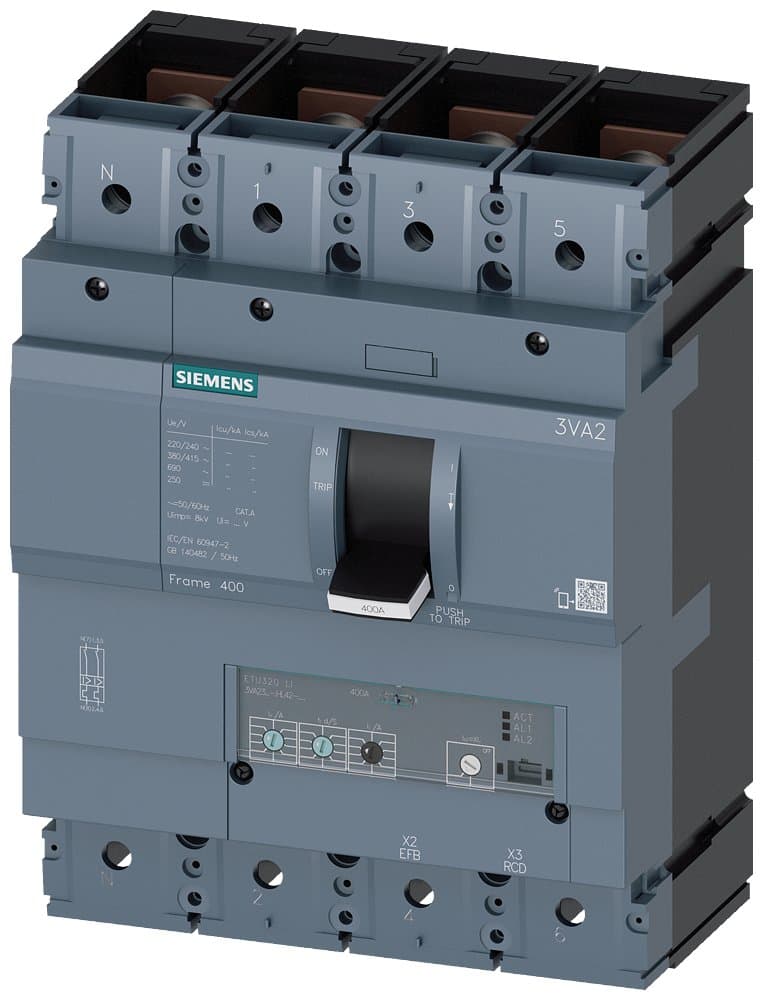

3VA2325-5HL42-0AA0
Product ID:101483
Updated: 2026/4/3
Key Features
- 1Ensure reliable protection with a high 55kA breaking capacity at 415V. 2、Adjust overload and short-circuit settings from 100A to 250A for precise coordination. 3、Simplify installation using the compact, modular 3VA2 frame design. 4、Enhance system safety with integrated ETU320 electronic trip unit protection. 5、Benefit from durable construction featuring solid-state technology and IP40 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2M400 R250 ETU320 F/4P; 3VA2_400 Dimensions; Rated Current 250A; Interrupting Rating M:55kA; Trip Unit ETU320; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU320 [Electronic Type LI] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-5HL42-0AA0 |
Specifications may be subject to change without notice
