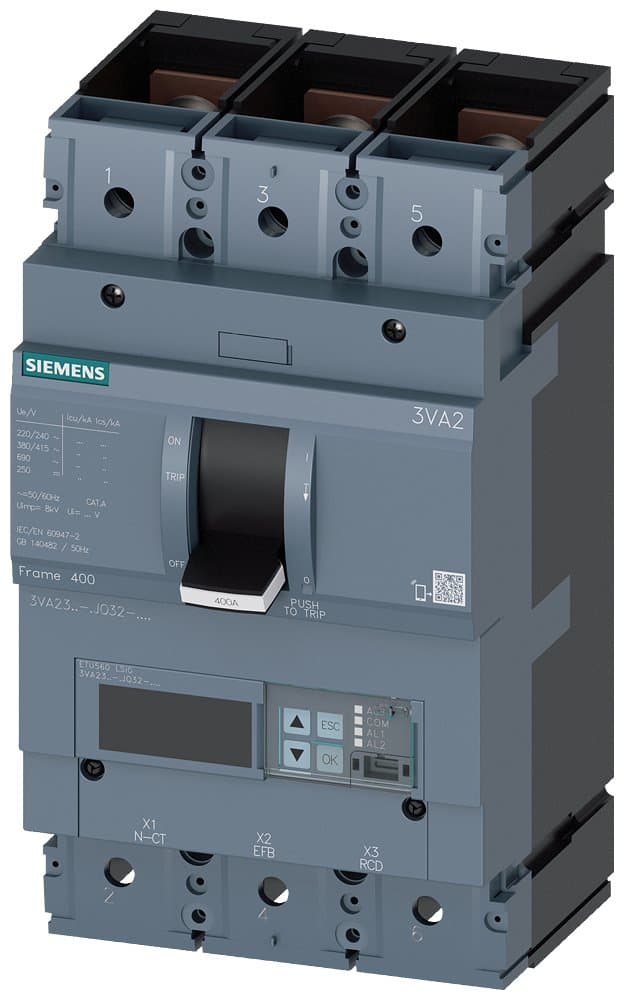

3VA2325-5JQ32-0AA0
Product ID:128869
Updated: 2026/7/7
Key Features
- 1Ensure robust short-circuit protection with a 55 kA breaking capacity at 415V.
- 2Integrate advanced LSIG protection via the ETU560 unit for selective coordination.
- 3Optimize overload safety with adjustable settings from 100A to 250A.
- 4Simplify installation and maintenance using compact, plug-in technology.
- 5Enable seamless system integration with advanced communication capabilities.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M400 R250 ETU560 F/3P; 3VA2_400 dimensions; Rated current 250A; Interrupting rating M:55kA; Trip unit ETU560; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560 [Electronic LSIG + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-5JQ32-0AA0 |
Specifications may be subject to change without notice
