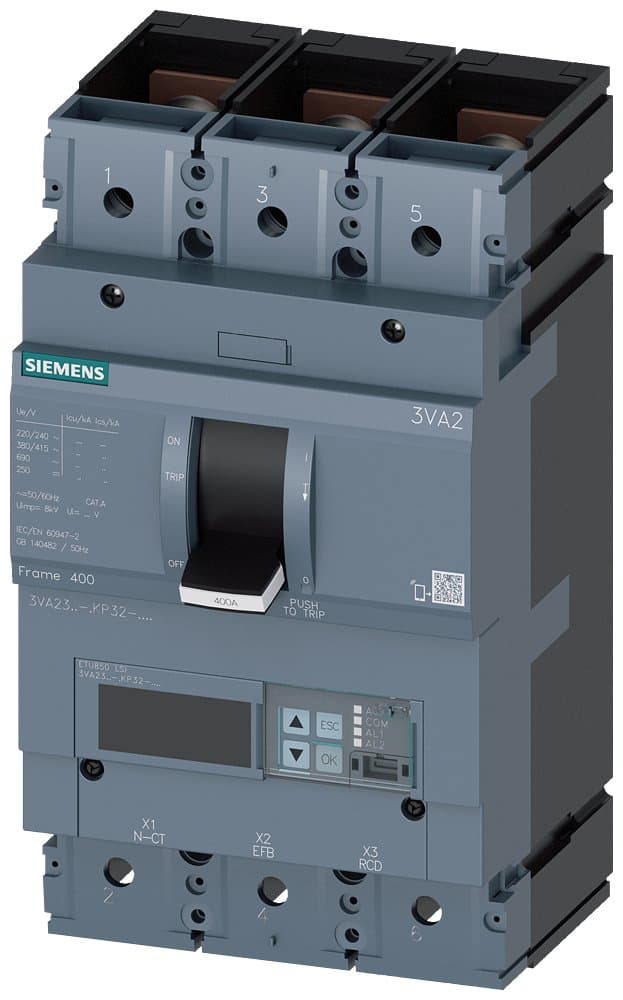

3VA2325-5KP32-0AA0
Product ID:204988
Updated: 2026/4/7
Key Features
- 1Achieve high breaking capacity up to 55 kA at 415 V. 2、Ensure selective protection with a 1:2.5 response interval. 3、Utilize integrated metering for energy data collection. 4、Save space with compact, fixed-mounting or plug-in technology. 5、Enhance flexibility with a modular design and diverse accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M400 R250 ETU850 F/3P; 3VA2_400 Size; Rated Current 250A; Interrupting M:55kA; Trip Unit ETU850; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850 [Electronic LSI+LCD+Mea] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-5KP32-0AA0 |
Specifications may be subject to change without notice
