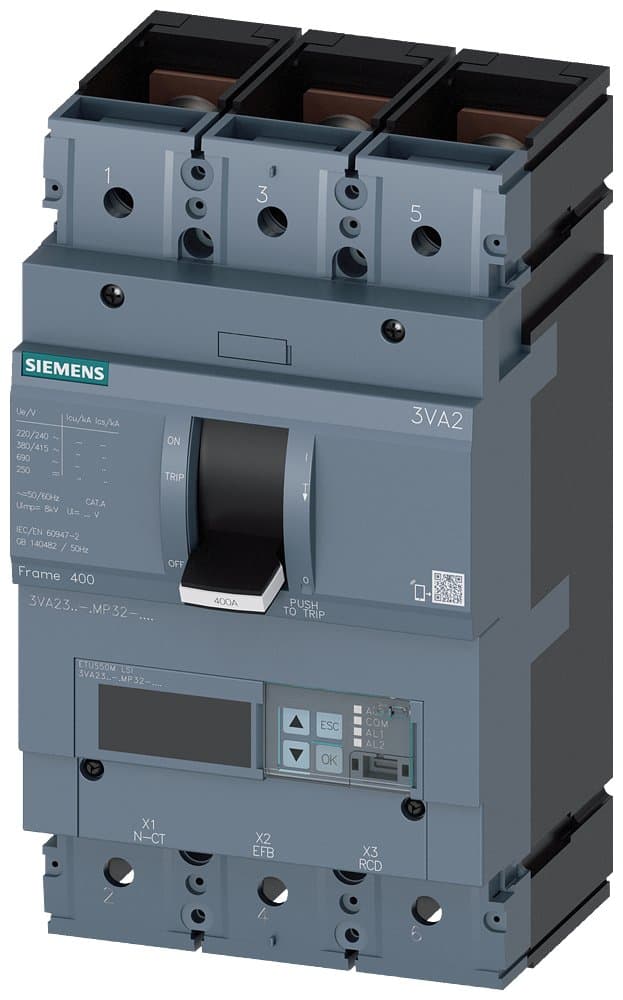

3VA2325-5MP32-0AA0
Product ID:120105
Updated: 2026/7/5
Key Features
- 1Ensure safety with a high breaking capacity of 55 kA at 415 V.
- 2Protect motors precisely using the ETU550M and LSI functions.
- 3Rely on robust IEC Frame 400 for dependable operation.
- 4Adjust overload protection from 100A to 250A as needed.
- 5Meet safety standards with REACH Regulation compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M400 R250 ETU550M F/3P; 3VA2_400 dimensions; Rated current 250A; Interrupting capacity M:55kA; Trip unit ETU550M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU550M [Motor Protection LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-5MP32-0AA0 |
Specifications may be subject to change without notice
