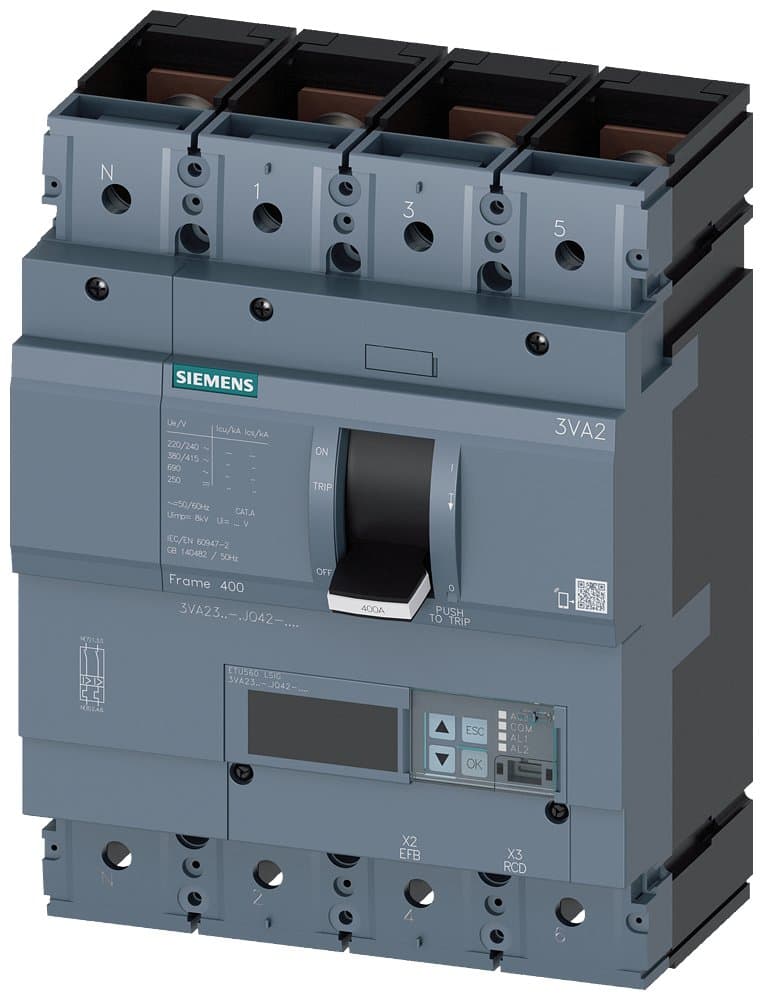

3VA2325-7JQ42-0AA0
Product ID:215584
Updated: 2026/6/26
Key Features
- 1Deliver high breaking capacity (Icu=110kA @415V) for robust short-circuit protection.
- 2Ensure selective protection to minimize downtime with precise tripping.
- 3Utilize advanced ETU560 electronic trip unit for accurate LSIG protection.
- 4Install compactly with IP40 enclosure for reliable operation anywhere.
- 5Apply universally with compatibility for 50/60 Hz frequency ratings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 110 | Rated Voltage (V): | 690 |
| Number of Poles: | 4P | Description | 3VA2C400 R250 ETU560 F/4P; 3VA2_400 dimensions; Rated current 250A; Interrupting rating C:110kA; Trip unit ETU560; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU560 [Electronic LSIG + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-7JQ42-0AA0 |
Specifications may be subject to change without notice
