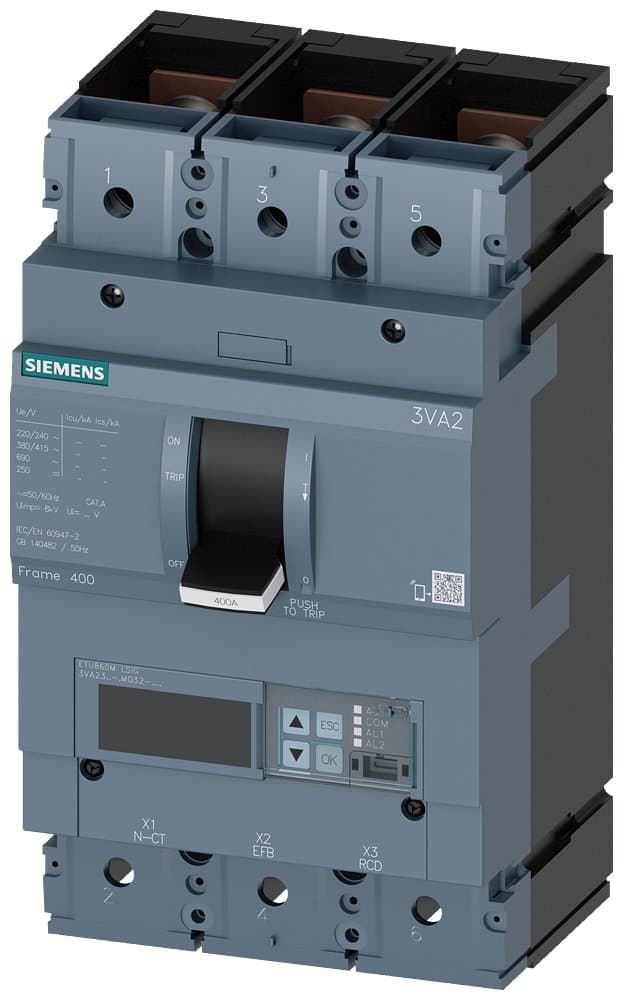

3VA2325-7MQ32-0AA0
Product ID:141559
Updated: 2026/4/14
Key Features
- 1Ensure reliable protection with a high breaking capacity of 110 kA at 415 V. 2、Integrate efficient motor operation using the ETU860M protection unit. 3、Safeguard power distribution with overload protection up to 250 A. 4、Achieve seamless integration via a compact design and flexible communication. 5、Enable precise short-circuit detection with advanced selective protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C400 R250 ETU860M F/3P; 3VA2_400 Size; Rated Current 250A; Interrupting C:110kA; Trip Unit ETU860M; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860M【Motor Protection, LSIG+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 250 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-7MQ32-0AA0 |
Specifications may be subject to change without notice
