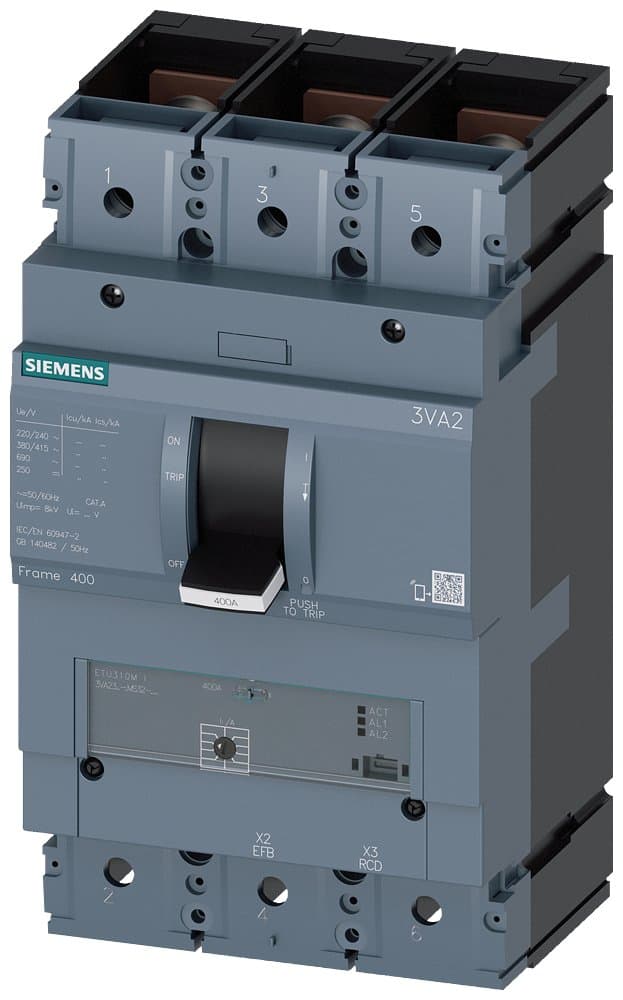

3VA2325-7MS32-0AA0
Product ID:142197
Updated: 2026/7/7
Key Features
- 1Ensure reliable protection with a high breaking capacity of 110 kA at 415 V.
- 2Simplify customization using standardized and flexible accessories.
- 3Achieve precise operation with an advanced electronic trip unit.
- 4Protect low-voltage systems with a robust 3-pole design.
- 5Enhance safety with integrated starter protection via ETU310M.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C400 R250 ETU310M F/3P; 3VA2_400 dimensions; Rated Current 250A; Interrupting C:110kA; Trip Unit ETU310M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU310M【Electronic Type with Only Short Circuit Protection, I Adjustable】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 250 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-7MS32-0AA0 |
Specifications may be subject to change without notice
