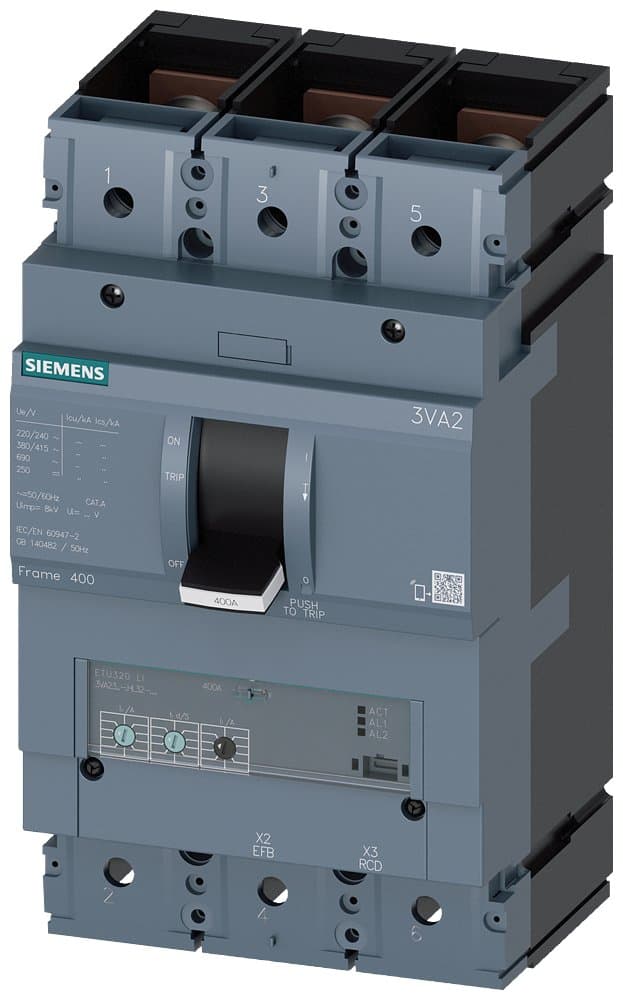

3VA2340-5HL32-0AA0
Product ID:100478
Updated: 2026/4/3
Key Features
- 1Ensure reliable protection with a high 55kA breaking capacity at 415V. 2、Save space using the compact design for various installations. 3、Utilize advanced ETU320 and LI units for precise overcurrent safety. 4、Simplify customization with modular, easy-to-fit internal accessories. 5、Withstand harsh conditions thanks to durable IP40-rated construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M400 R400 ETU320 F/3P; 3VA2_400 dimensions; Rated Current 400A; Interrupting Rating M:55kA; Trip Unit ETU320; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU320 [Electronic Type LI] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2340-5HL32-0AA0 |
Specifications may be subject to change without notice
