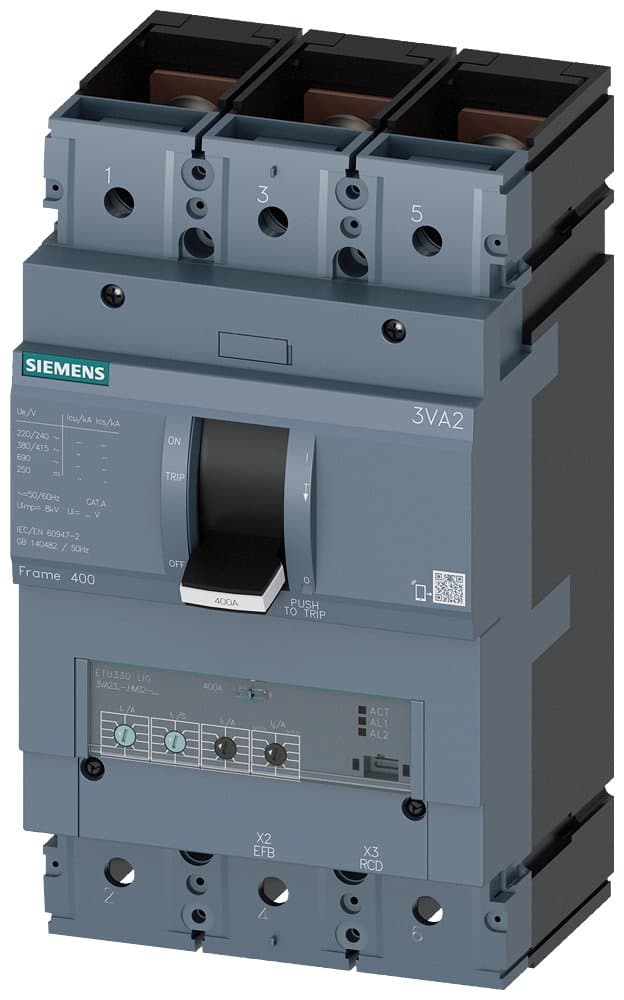

3VA2340-5HM32-0AA0
Product ID:226505
Updated: 2026/4/3
Key Features
- 1Achieve high 55 kA breaking capacity at 415V for superior protection. 2、Utilize the 3-pole design for comprehensive electrical line safety. 3、Leverage the ETU330 electronic trip unit for precise fault detection. 4、Configure overload protection settings from 160A to 400A. 5、Deploy the robust IEC Frame 400 for reliable, long-term operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M400 R400 ETU330 F/3P; 3VA2_400 dimensions; Rated Current 400A; Interrupting M:55kA; Trip Unit ETU330; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2340-5HM32-0AA0 |
Specifications may be subject to change without notice
