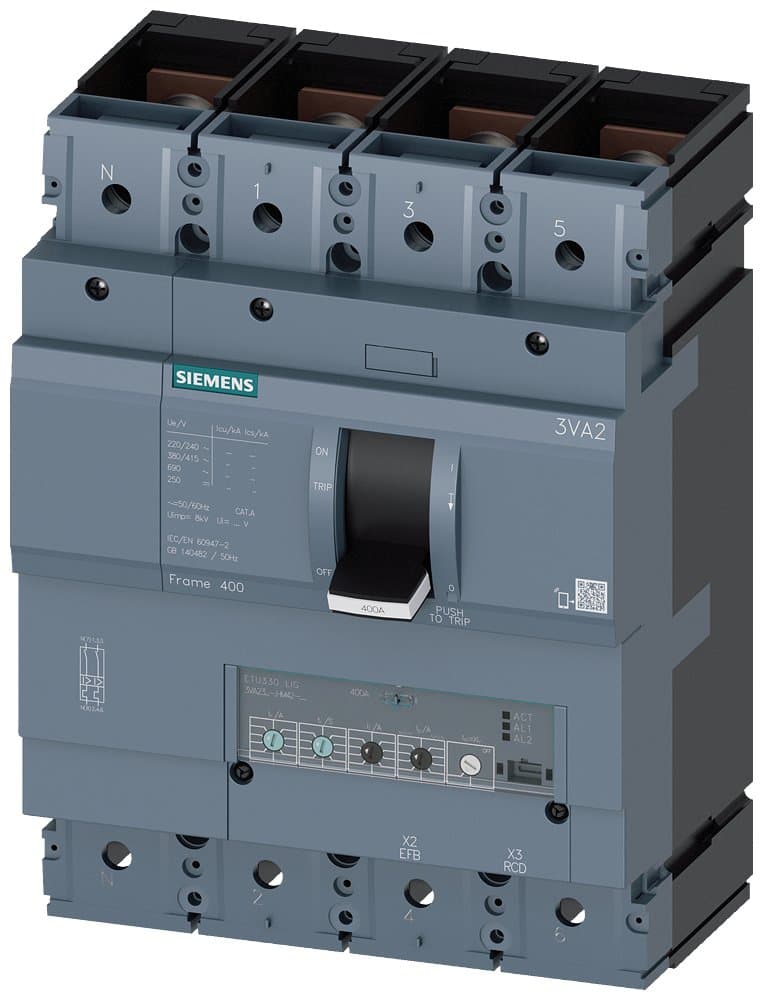

3VA2340-5HM42-0AA0
Product ID:103091
Updated: 2026/7/3
Key Features
- 1Achieve high breaking capacity of 55 kA at 415 V.
- 2Utilize advanced line protection with ETU330 and LIG.
- 3Configure overload protection up to 400 A.
- 4Benefit from a compact IEC Frame 400 design.
- 5Receive free delivery across the USA.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2M400 R400 ETU330 F/4P; 3VA2_400 dimensions; Rated current 400A; Interrupting rating M:55kA; Trip unit ETU330; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2340-5HM42-0AA0 |
Specifications may be subject to change without notice
