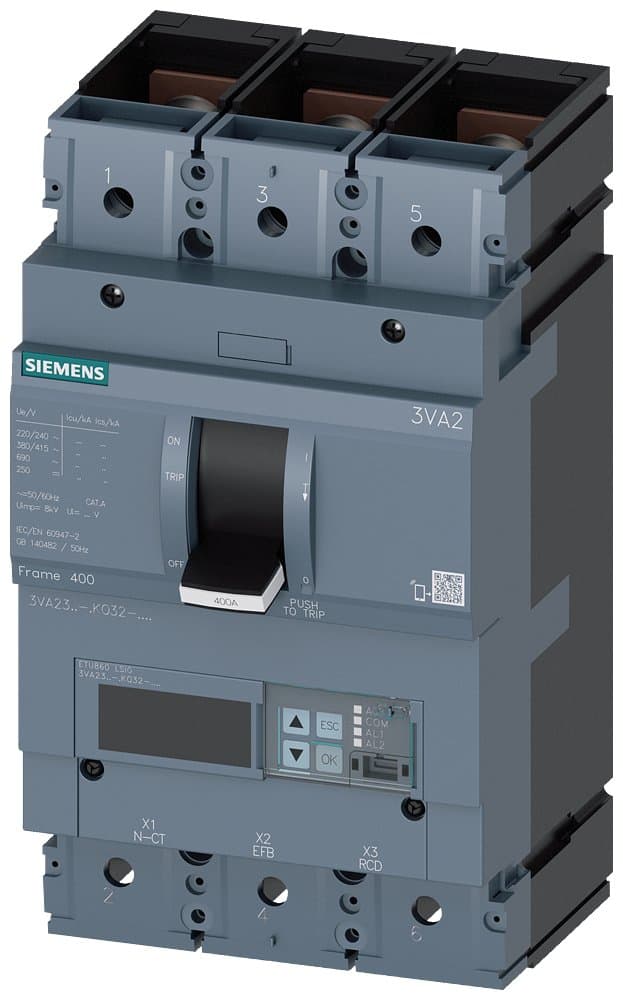

3VA2340-5KQ32-0AA0
Product ID:225695
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity of 55 kA at 415 V AC. 2、Ensure excellent selective tripping with a 1:2.5 current interval. 3、Install easily with compact 70 mm cover dimensions. 4、Measure power/energy precisely via integrated metering. 5、Expand functions with modular, easy-to-fit accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M400 R400 ETU860 F/3P; 3VA2_400 dimensions; Rated Current 400A; Interrupting M:55kA; Trip Unit ETU860; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860【Electronic LSIG+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2340-5KQ32-0AA0 |
Specifications may be subject to change without notice
