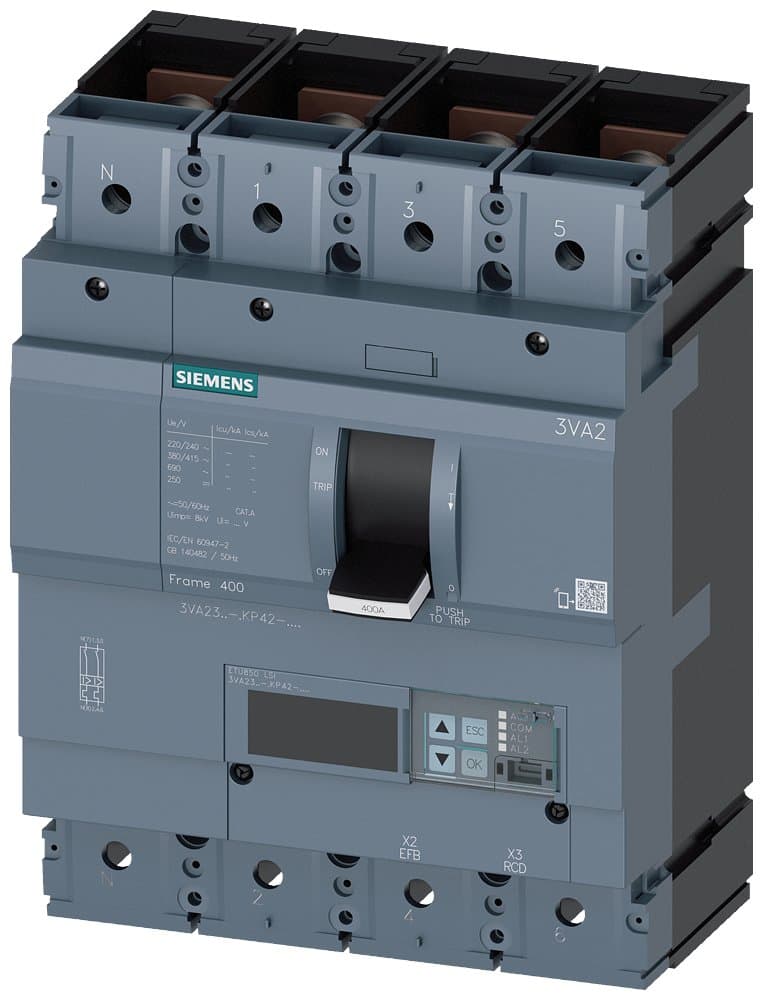

3VA2340-7KP42-0AA0
Product ID:106423
Updated: 2026/4/5
Key Features
- 1Deliver reliable short-circuit protection with a 110 kA breaking capacity at 415V. 2、Choose flexible installation via fixed, plug-in, or withdrawable versions. 3、Utilize advanced ETU850 line protection for comprehensive system safety. 4、Integrate easily into panels with a compact 70mm cover design. 5、Enhance functionality with a wide range of compatible modular accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2C400 R400 ETU850 F/4P; 3VA2_400 dimensions; Rated current 400A; Interrupting rating C:110kA; Trip unit ETU850; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850 [Electronic LSI+LCD+Mea] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2340-7KP42-0AA0 |
Specifications may be subject to change without notice
