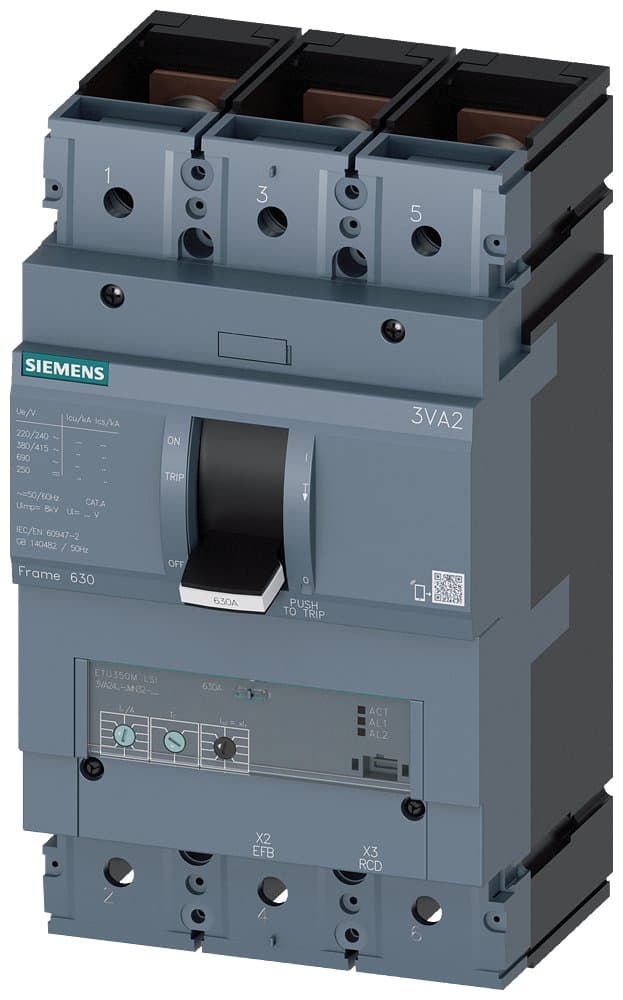

3VA2440-5MN32-0AA0
Product ID:225756
Updated: 2026/4/3
Key Features
- 1Achieve high 55kA breaking capacity at 415V for superior fault protection. 2、Utilize 3-pole IEC Frame 630 design for versatile industrial applications. 3、Protect motors with advanced ETU350M and LSI trip technology. 4、Ensure safe operation with overload protection adjustable up to 400A. 5、Rely on a compact, durable molded case for long-lasting reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M630 R400 ETU350M F/3P; 3VA2_630 dimensions; Rated Current 400A; Interrupting M:55kA; Trip Unit ETU350M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350M【Motor Protection LSI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2440-5MN32-0AA0 |
Specifications may be subject to change without notice
