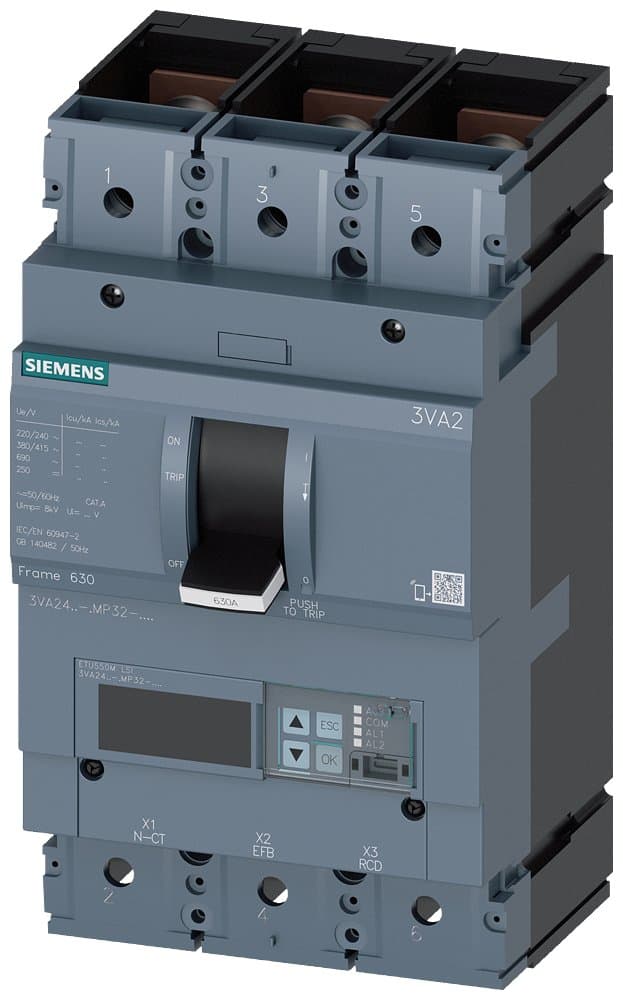

3VA2440-5MP32-0AA0
Product ID:199941
Updated: 2026/7/5
Key Features
- 1Achieve high short-circuit protection with 55 kA breaking capacity at 415V.
- 2Safeguard motors using the ETU550M electronic trip unit with LSI protection.
- 3Ensure reliable operation in harsh conditions thanks to a robust IP40-rated design.
- 4Customize tripping settings with adjustable overload and short-circuit response values.
- 5Simplify installation with wide compatibility for various conductor cross-sections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M630 R400 ETU550M F/3P; 3VA2_630 dimensions; Rated current 400A; Interrupting rating M:55kA; Trip unit ETU550M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required not in the list, reset and select trip unit first) | ETU550M [Motor Protection LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 630 [400-630A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2440-5MP32-0AA0 |
Specifications may be subject to change without notice
