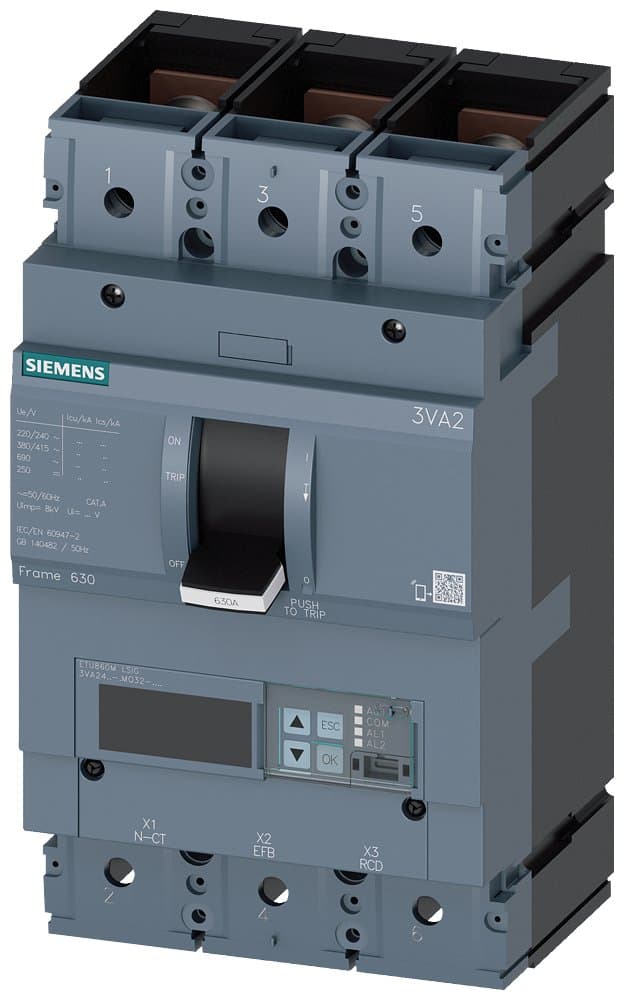

3VA2440-5MQ32-0AA0
Product ID:112884
Updated: 2026/4/6
Key Features
- 1Ensure reliable protection with a high breaking capacity of 55 kA at 415V. 2、Optimize motor safety using the advanced ETU860M protection unit. 3、Benefit from integrated overload protection rated up to 400A. 4、Enable seamless system integration via flexible bus communication options. 5、Simplify installation and maintenance with a compact, modular design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M630 R400 ETU860M F/3P; 3VA2_630 Dimensions; Rated Current 400A; Interrupting M:55kA; Trip Unit ETU860M; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860M【Motor Protection, LSIG+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2440-5MQ32-0AA0 |
Specifications may be subject to change without notice
