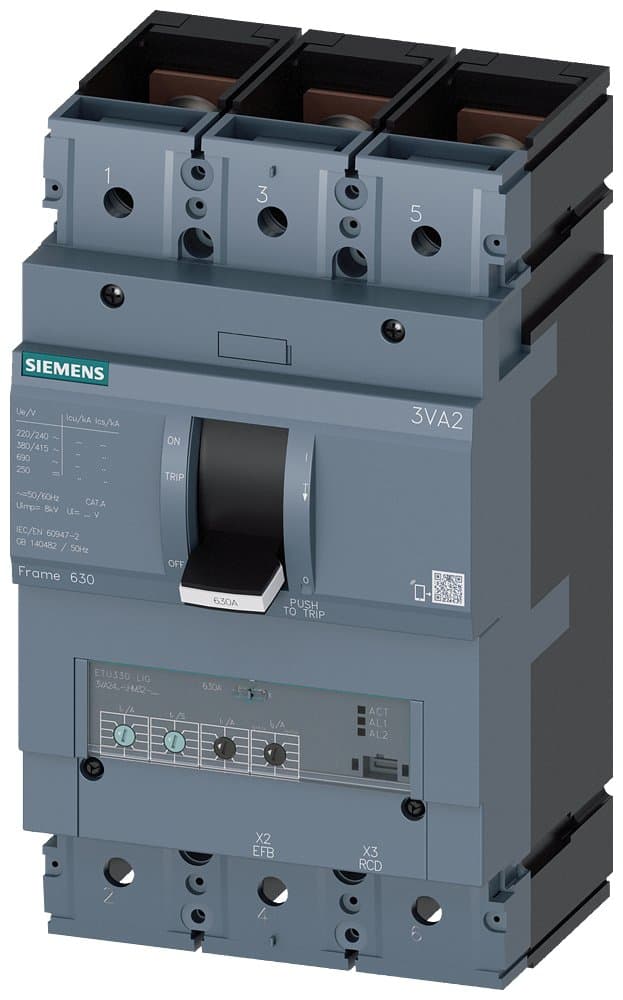

3VA2440-6HM32-0AA0
Product ID:99935
Updated: 2026/4/3
Key Features
- 1Deliver high breaking capacity up to 85 kA at 415 V. 2、Ensure reliable line protection with ETU330 and LI features. 3、Simplify installation using a compact 70 mm cover design. 4、Provide advanced overload protection from 160 A to 400 A. 5、Enable diverse functions with modular internal accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2H630 R400 ETU330 F/3P; 3VA2_630 Dimensions; Rated Current 400A; Interrupting H:85kA; Trip Unit ETU330; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 400 | Specification: | 630 [400-630A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2440-6HM32-0AA0 |
Specifications may be subject to change without notice
