Key Features
- 1Achieve reliable short-circuit protection with 85 kA breaking capacity at 415 V. 2、Enable precise fault detection via selective protection in a 1:2.5 current interval. 3、Monitor energy usage in real-time with the integrated metering function. 4、Simplify installation using compact plug-in and draw-out technology. 5、Integrate into building automation via ETUs with advanced communication.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage (V): | 690 |
| Number of Poles: | 4P | Description | 3VA2H630 R400 ETU850 F/4P; 3VA2_630 dimensions; Rated current 400A; Interrupting rating H:85kA; Trip unit ETU850; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850 [Electronic LSI+LCD+Mea] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 400 | Specifications: | 630 [400-630A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |

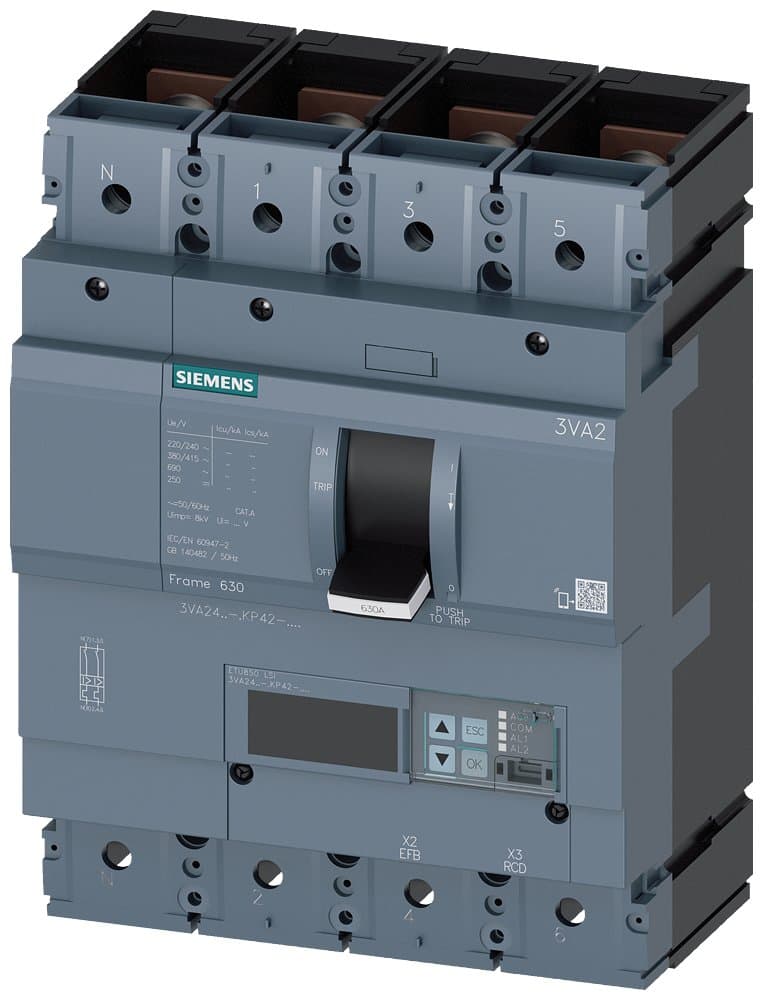

| Model Number | 3VA2440-6KP42-0AA0 |
Specifications may be subject to change without notice
