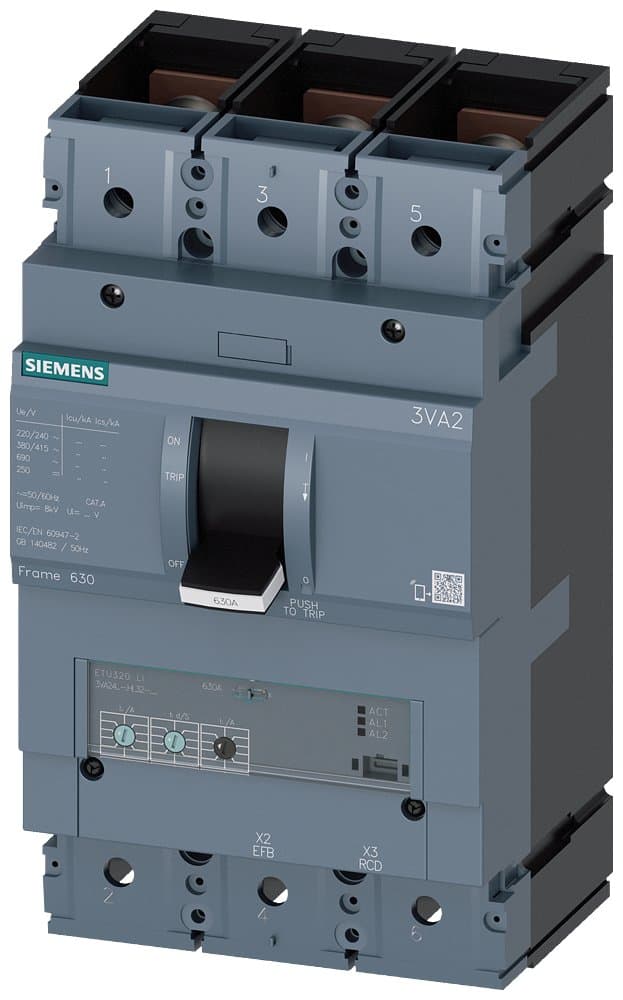

3VA2440-7HL32-0AA0
Product ID:130657
Updated: 2026/4/6
Key Features
- 1Achieve robust protection with a high breaking capacity of 110 kA @ 415V. 2、Detect faults precisely using the advanced electronic trip unit (ETU320). 3、Ensure comprehensive line protection with a 3-pole, 400A overload design. 4、Rely on the IEC frame 630 with very high breaking capacity (class C). 5、Deploy in diverse industrial applications demanding high reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 110 | Rated Voltage (V) | 690 |
| Number of Poles | 3P | Description | 3VA2C630 R400 ETU320 F/3P; 3VA2_630 dimensions; Rated Current 400A; Interrupting C:110kA; Trip Unit ETU320; |
| Mounting Method | F: Fixed | Trip Unit (Reset if not listed and select trip unit first) | ETU320【Electronic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 110 | Interrupting Rating | C:110kA |
| Rated Current In(A) | 400 | Specifications | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2440-7HL32-0AA0 |
Specifications may be subject to change without notice
