Key Features
- 1Ensure robust protection with a high breaking capacity of 55 kA at 415 V. 2、Utilize the 3-pole design and IEC Frame 630 for reliable system safety. 3、Benefit from comprehensive line protection via ETU550 and LSI technology. 4、Configure overload protection up to 500 A and precise short-circuit settings. 5、Customize your setup with available modular accessories for enhanced flexibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2M630 R500 ETU550 F/3P; 3VA2_630 dimensions; Rated Current 500A; Interrupting M:55kA; Trip Unit ETU550; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550【Electronic LSI+LCD】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |

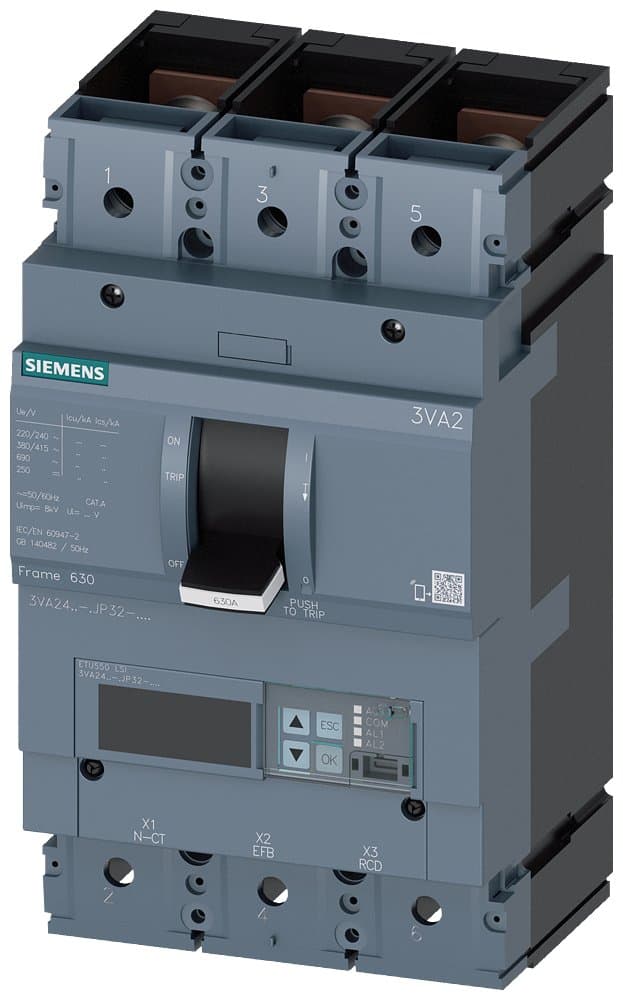

| Model Number | 3VA2450-5JP32-0AA0 |
Specifications may be subject to change without notice
