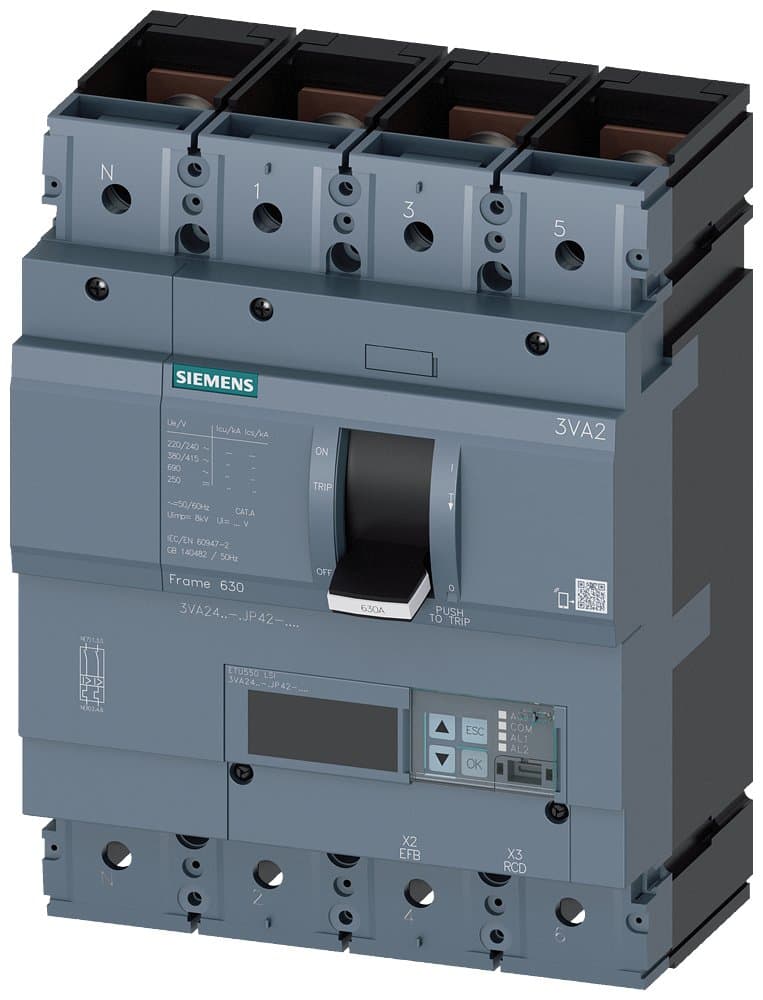

3VA2450-7JP42-0AA0
Product ID:217715
Updated: 2026/4/5
Key Features
- 1Ensure reliable protection with a high breaking capacity of 110 kA @ 415 V. 2、Utilize the robust IEC Frame 630 design for efficient operation. 3、Achieve comprehensive line protection with a 4-pole configuration. 4、Enhance safety using the integrated ETU550 protection system. 5、Monitor and control loads continuously with 500A overload protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2C630 R500 ETU550 F/4P; 3VA2_630 dimensions; Rated current 500A; Interrupting rating C:110kA; Trip unit ETU550; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 500 | Specifications: | 630 [400-630A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2450-7JP42-0AA0 |
Specifications may be subject to change without notice
