Key Features
- 1Deliver robust short-circuit protection with 85 kA breaking capacity at 415 V.
- 2Ensure comprehensive electrical safety via advanced ETU330 line protection.
- 3Safeguard against excessive current with overload protection up to 630 A.
- 4Simplify installation and maintenance using a compact, standardized design.
- 5Enhance energy management with integrated metering and communication.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2H630 R630 ETU330 F/4P; 3VA2_630 dimensions; Rated Current 630A; Interrupting H:85kA; Trip Unit ETU330; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 630 | Specifications: | 630 [400-630A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |

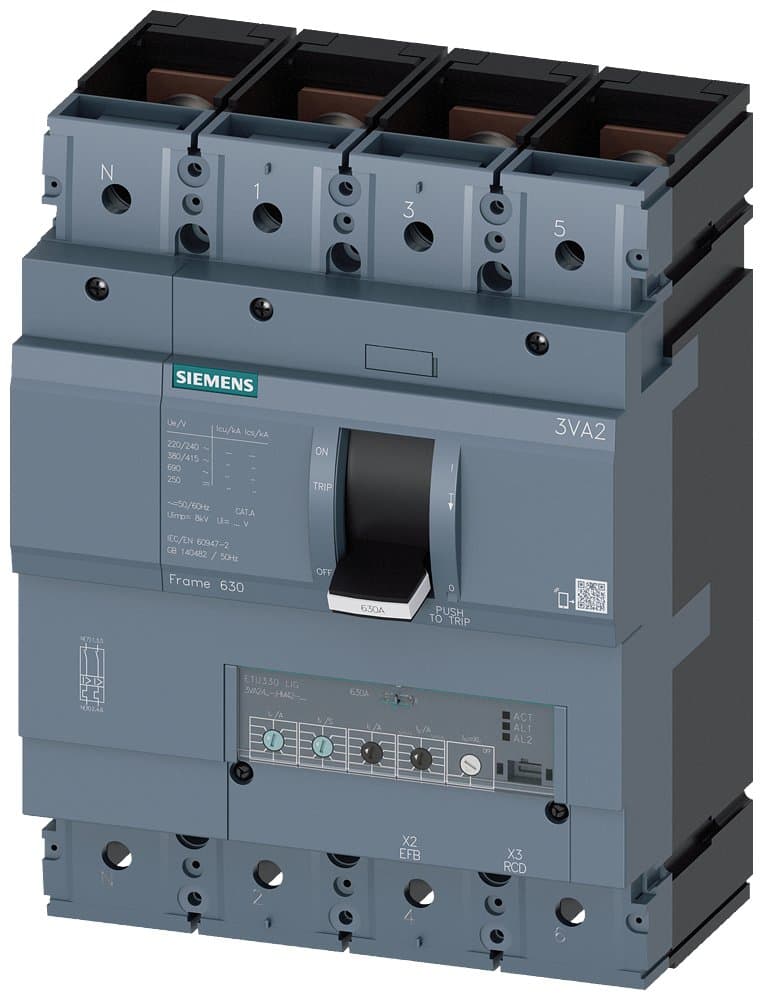

| Model Number | 3VA2463-6HM42-0AA0 |
Specifications may be subject to change without notice
