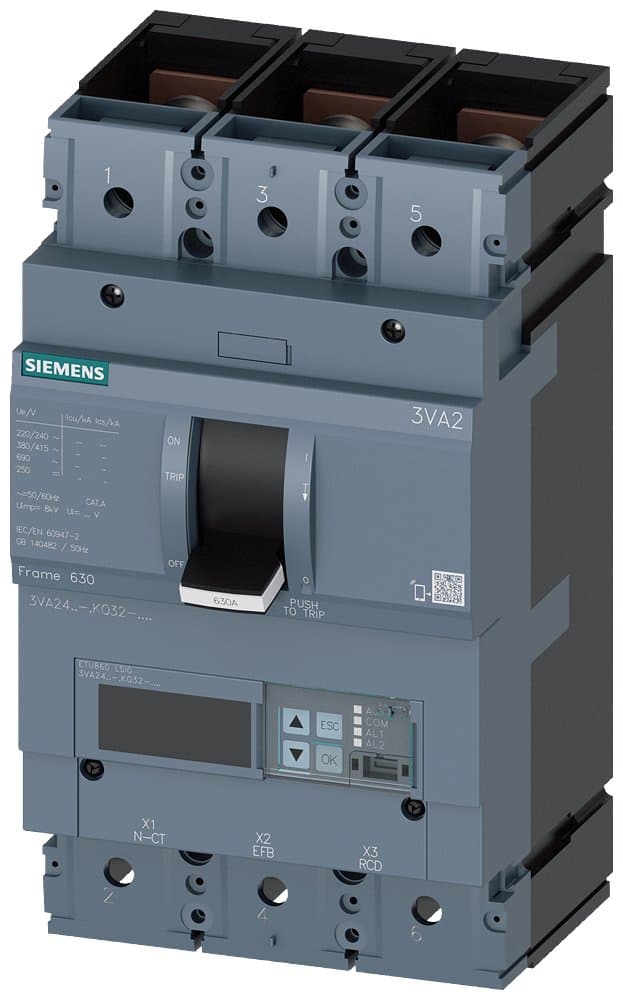

3VA2463-7KQ32-0AA0
Product ID:102181
Updated: 2026/4/3
Key Features
- 1Ensure robust line protection with a 110kA interrupting rating. 2、Deploy advanced LSIG overload and short-circuit protection. 3、Comply with IEC Frame 630 standards for reliable performance. 4、Utilize the three-pole configuration for comprehensive circuit safety. 5、Handle high-current applications up to 630A rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C630 R630 ETU860 F/3P; 3VA2_630 dimensions; Rated Current 630A; Interrupting C:110kA; Trip Unit ETU860; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860【Electronic LSIG+LCD+Mea】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 630 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2463-7KQ32-0AA0 |
Specifications may be subject to change without notice
