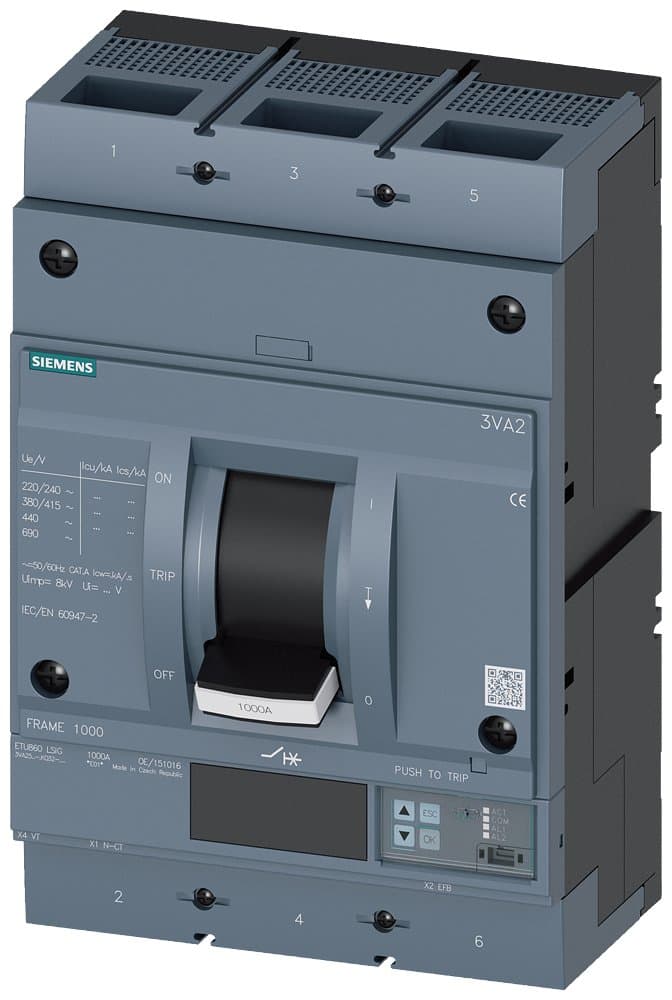

3VA2510-5KQ32-0AA0
Product ID:102428
Updated: 2026/7/3
Key Features
- 1Achieve high breaking capacity up to 55 kA at 415 V.
- 2Enable selective protection for precise fault detection.
- 3Utilize integrated metering for accurate power measurement.
- 4Select compact dimensions with multiple mounting options.
- 5Install modular internal accessories for diverse functions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics(kA)@690V: | 19 | Icu(kA)@690V: | 25 |
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VA2M1000 R1000 ETU860 F/3P; 3VA2_1000 dimensions; Rated Current 1000A; Interrupting Rating M:55kA; Trip Unit ETU860 |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select the trip unit first) | ETU860【Electronic LSIG+LCD+Measurement】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 1000 | Specification: | 1000【630-1000A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2510-5KQ32-0AA0 |
Specifications may be subject to change without notice
