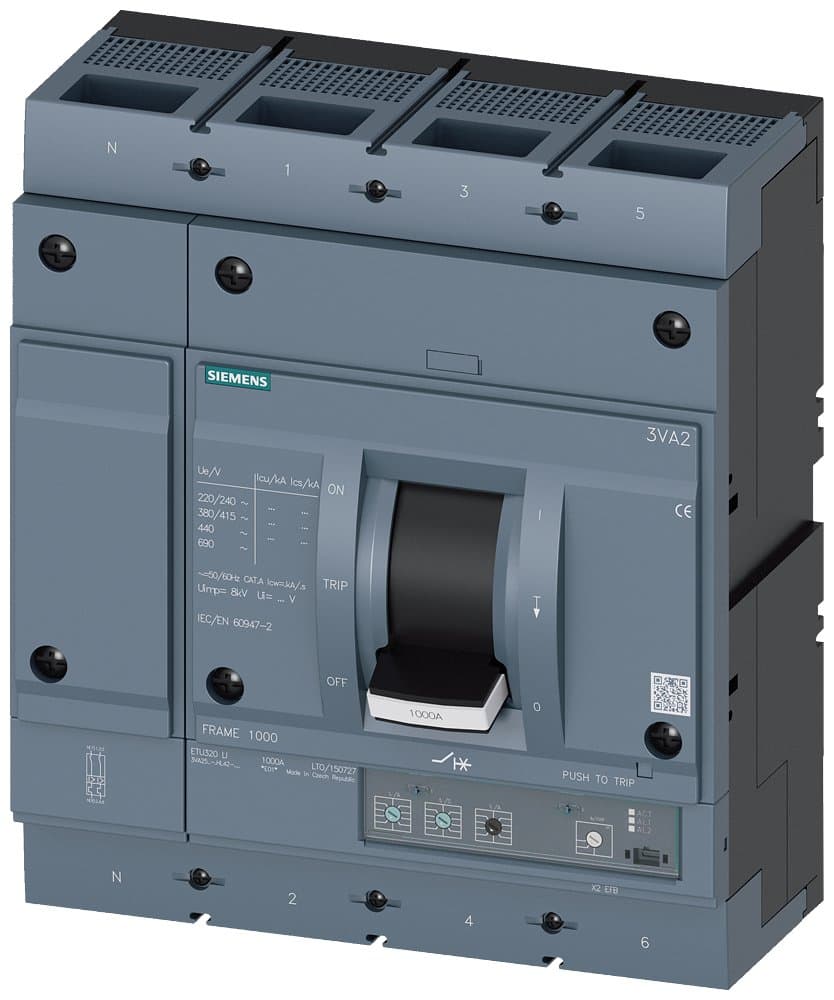

3VA2510-6HL42-0AA0
Product ID:215282
Updated: 2026/6/27
Key Features
- 1Achieve a high breaking capacity of 85 kA at 415 V for superior safety.
- 2Utilize advanced line protection with the ETU320 system for precision.
- 3Ensure reliable overload protection up to 1000 A for consistent operation.
- 4Benefit from a comprehensive 4-pole design for full system protection.
- 5Rely on the robust IEC frame 1000 construction for long-term durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics(kA)@690V: | 19 | Icu(kA)@690V: | 35 |
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VA2H1000 R1000 ETU320 F/4P; 3VA2_1000 dimensions; Rated Current 1000A; Interrupting Rating H:85kA; Trip Unit ETU320 |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320【Electronic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 1000 | Specifications: | 1000【630-1000A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2510-6HL42-0AA0 |
Specifications may be subject to change without notice
