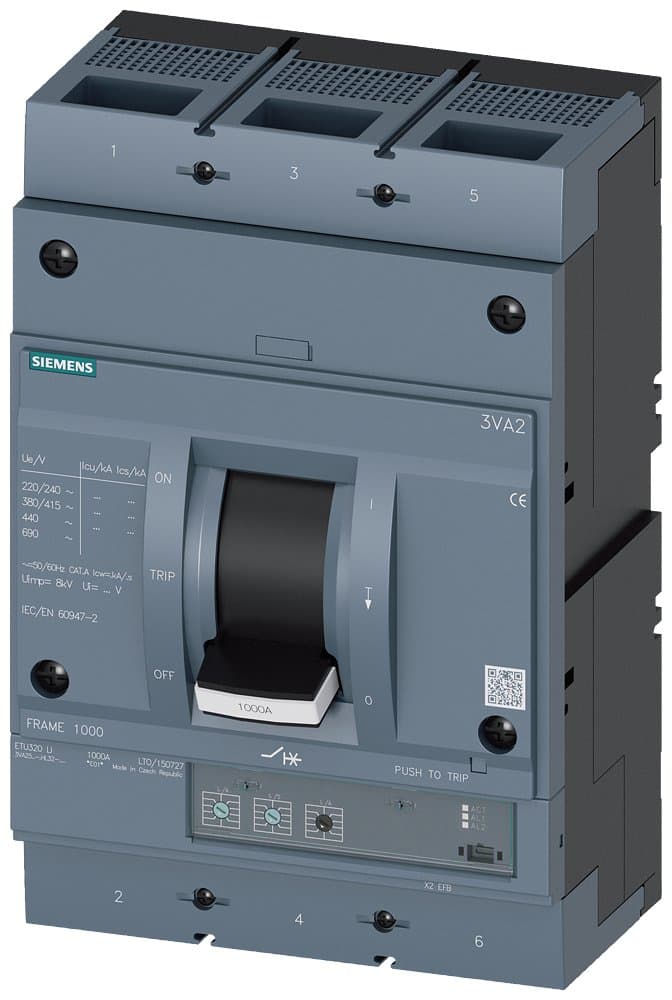

3VA2563-6HL32-0AA0
Product ID:101272
Updated: 2026/7/2
Key Features
- 1Achieve high breaking capacity of 85 kA at 415 V.
- 2Ensure robust line protection with the ETU320 system.
- 3Configure overload protection up to 630 A.
- 4Utilize the reliable IEC Frame 1000 design.
- 5Deploy in critical 3-pole industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics(kA)@690V: | 19 | Icu(kA)@690V: | 35 |
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VA2H1000 R630 ETU320 F/3P; 3VA2_1000 Dimensions; Rated Current 630A; Interrupting Rating H:85kA; Trip Unit ETU320 |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320 [Electronic Type LI] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 630 | Specification: | 1000 [630-1000A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2563-6HL32-0AA0 |
Specifications may be subject to change without notice
