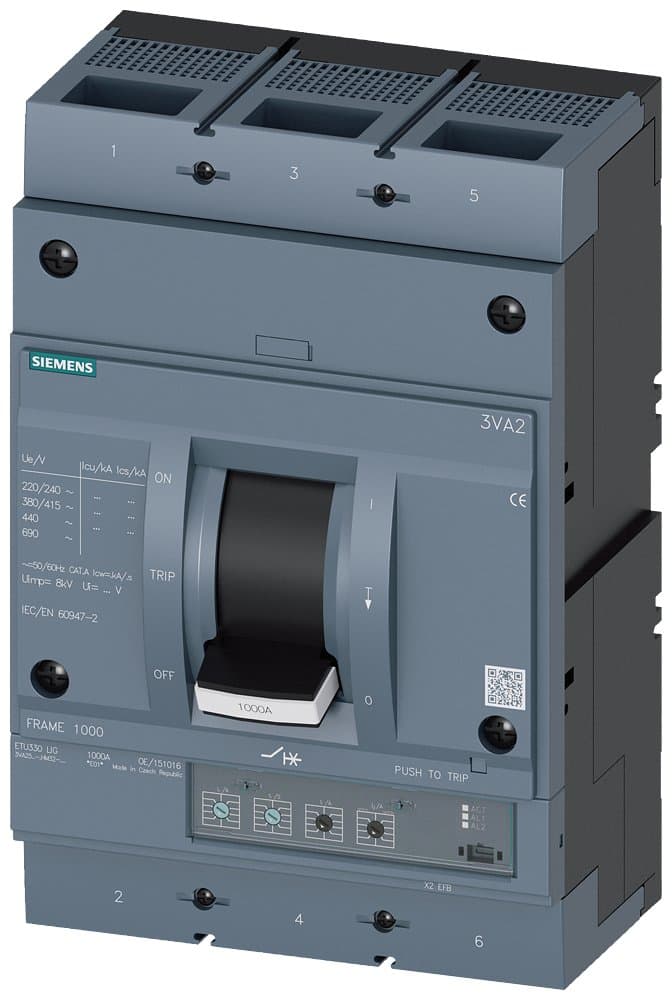

3VA2563-6HM32-0AA0
Product ID:100579
Updated: 2026/7/8
Key Features
- 1Achieve 85 kA breaking capacity at 415V for superior fault protection.
- 2Utilize ETU330 and LIG systems for comprehensive electrical protection.
- 3Handle up to 630A rated current for demanding industrial loads.
- 4Integrate the compact design easily into existing panels.
- 5Meet stringent industrial standards for reliable, continuous operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics(kA)@690V: | 19 | Icu(kA)@690V: | 35 |
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VA2H1000 R630 ETU330 F/3P; 3VA2_1000 dimensions; Rated Current 630A; Interrupting Rating H:85kA; Trip Unit ETU330 |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In(A): | 630 | Specifications: | 1000 [630-1000A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2563-6HM32-0AA0 |
Specifications may be subject to change without notice
