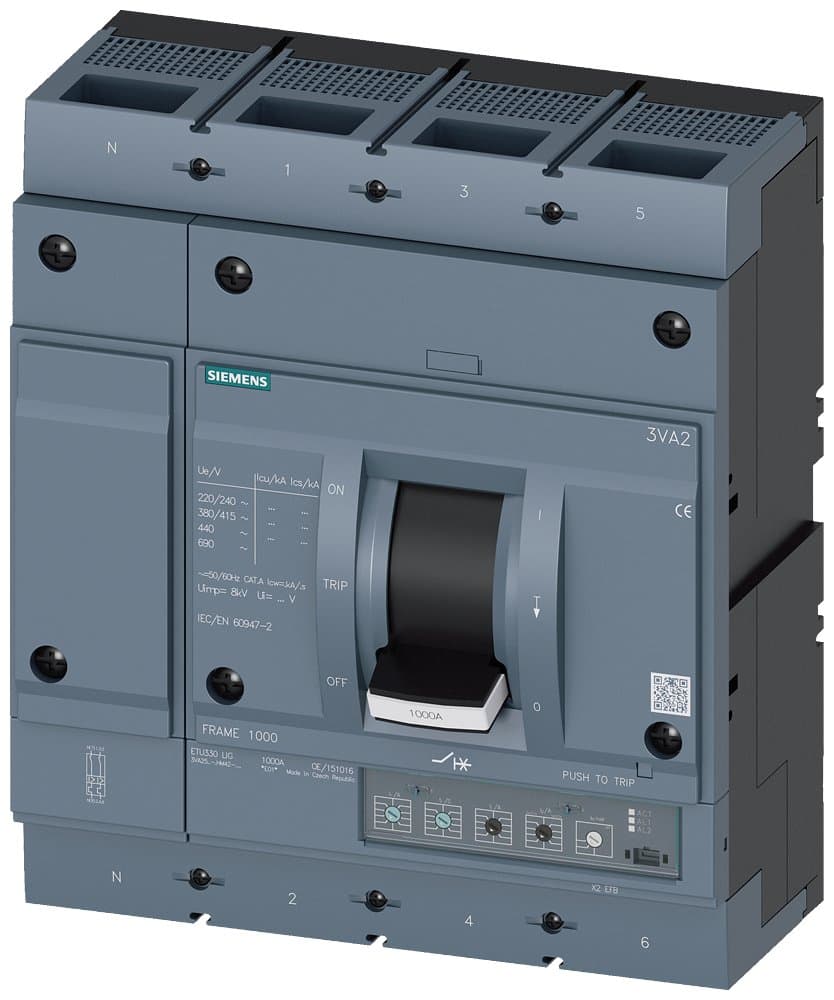

3VA2580-5HM42-0AA0
Product ID:224765
Updated: 2026/4/3
Key Features
- 1Deliver high-performance protection with electronic trip units. 2、Safeguard three-phase, AC, and DC networks reliably. 3、Optimize panel space using a compact 70mm depth design. 4、Expand functionality with a wide range of modular accessories. 5、Monitor power consumption via integrated metering functions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics(kA)@690V: | 19 | Icu(kA)@690V: | 25 |
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VA2M1000 R800 ETU330 F/4P; 3VA2_1000 dimensions; Rated Current 800A; Interrupting Rating M:55kA; Trip Unit ETU330 |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select the trip unit first) | ETU330 [Electronic LIG] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 800 | Specification: | 1000 [630-1000A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2580-5HM42-0AA0 |
Specifications may be subject to change without notice
