Key Features
- 1Achieve high breaking capacity of 85 kA at 415 V. 2、Utilize the integrated ETU550 for enhanced line protection. 3、Ensure overload protection up to 800 A. 4、Benefit from a compact design with standardized installation. 5、Apply in AC and DC systems with no derating up to +50 °C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics (kA) @690V: | 19 | Icu (kA) @690V: | 35 |
| Rated Service Breaking Capacity Ics (kA): @400V or 415V | 85 | Rated Voltage (V): | 415 |
| Number of Poles: | 4P | Description | 3VA2H1000 R800 ETU550 F/4P; 3VA2_1000 dimensions; Rated Current 800A; Interrupting Rating H:85kA; Trip Unit ETU550 |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
| Rated Current In (A): | 800 | Specifications: | 1000 [630-1000A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |

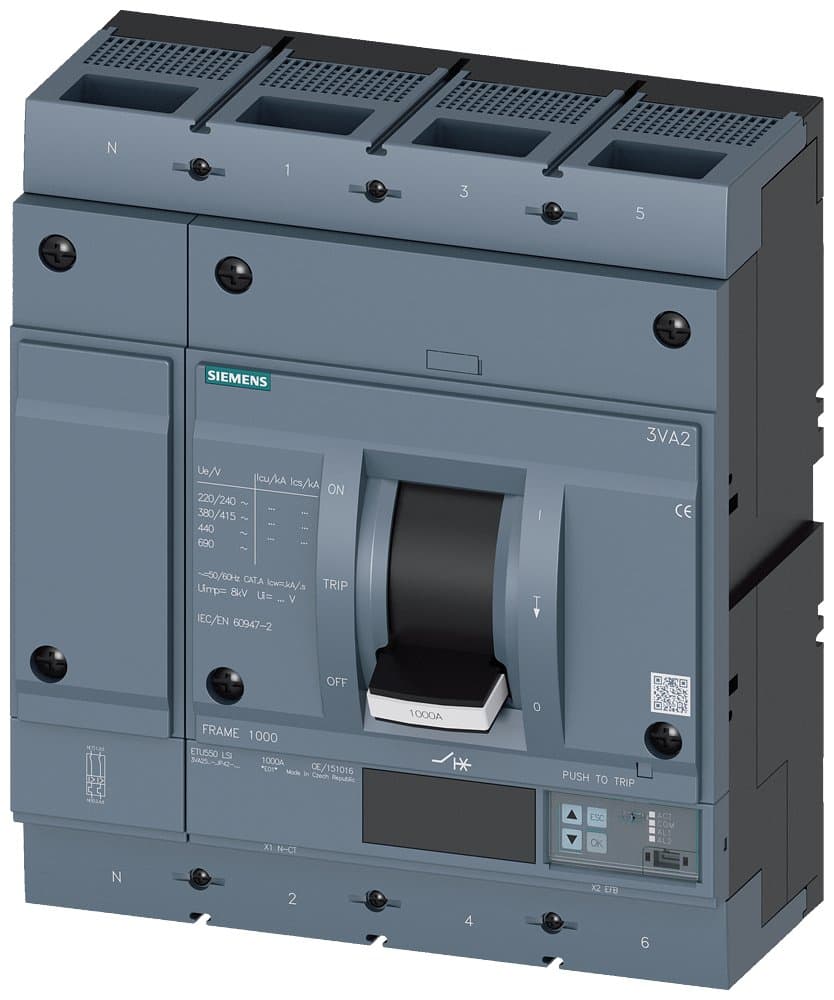

| Model Number | 3VA2580-6JP42-0AA0 |
Specifications may be subject to change without notice
