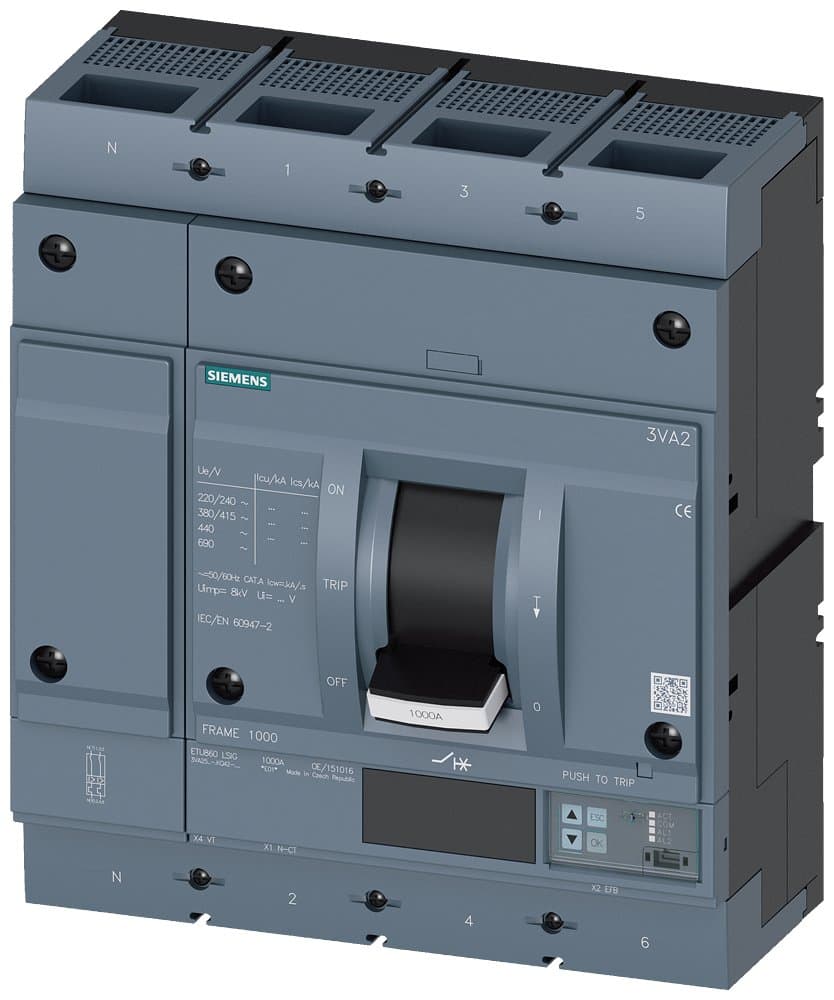

3VA2580-7KQ42-0AA0
Product ID:220137
Updated: 2026/6/21
Key Features
- 1Deliver up to 110 kA at 415 V for reliable short-circuit protection.
- 2Provide line, generator, motor, and starter combination protection.
- 3Enable easy installation with 70 mm depth and 45 mm cover size.
- 4Ensure selective tripping with dynamic range and high breaking capacity.
- 5Measure power/energy precisely via Electronic Trip Units with metering.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ics (kA) @690V: | 19 | Icu (kA) @690V: | 35 |
| Rated Service Breaking Capacity Ics (kA): @400V or 415V | 110 | Rated Voltage (V): | 415 |
| Number of Poles: | 4P | Description | 3VA2C1000 R800 ETU860 F/4P; 3VA2_1000 dimensions; Rated Current 800A; Interrupting Rating C:110kA; Trip Unit ETU860 |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select the trip unit first) | ETU860 [Electronic LSIG + LCD + Mea] |
| Rated Ultimate Breaking Capacity Icu (kA): @400V or 415V | 110 | Interrupting Rating Class: | C:110kA |
| Rated Current In (A) | 800 | Specifications | 1000 [630-1000A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2580-7KQ42-0AA0 |
Specifications may be subject to change without notice
