Key Features
- 1Ensure reliable line protection with a high breaking capacity of 36 kA at 415 V. 2、Save panel space using a compact design with 70 mm depth. 3、Simplify installation with modular and easy-to-fit internal accessories. 4、Select 3-pole or 4-pole versions for various electrical applications. 5、Meet strict IEC standards for EMC and operational safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Interrupting Capacity Ics(kA):@400V or 415V | 12 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1S100 R16 TM210 F/3P; Size 100; Rated Current 16A; Interrupting S:36kA; Trip Unit TM210; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, then select the trip unit) | TM210 [LI fixed, line protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 16 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

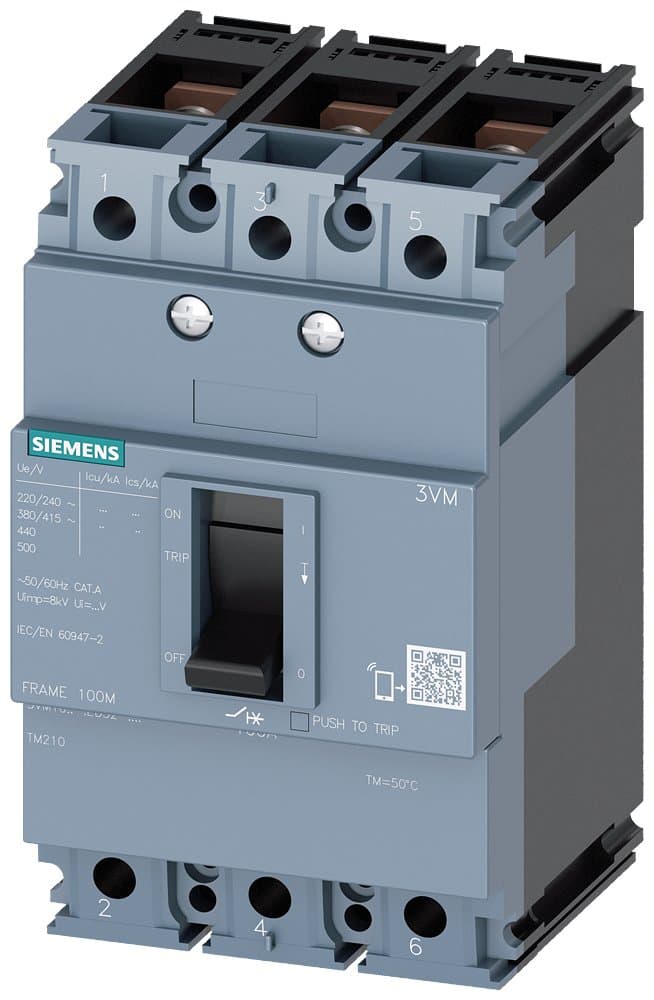

| Model Number | 3VM1096-4ED32-0AA0 |
Specifications may be subject to change without notice
