Key Features
- 1Achieve robust line protection with breaking capacities up to 36 kA at 415 V.
- 2Utilize a compact design for space-efficient installations in various settings.
- 3Rely on the thermal-magnetic trip unit for overload and short-circuit protection.
- 4Install in multiple positions including vertical wall, ceiling, and floor mounting.
- 5Ensure compliance with IEC/EN 60947 standards for safety and EMC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 12 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1S100 R16 TM210 F/4P; Size 100; Rated Current 16A; Interrupting Rating S:36kA; Trip Unit TM210; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 16 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

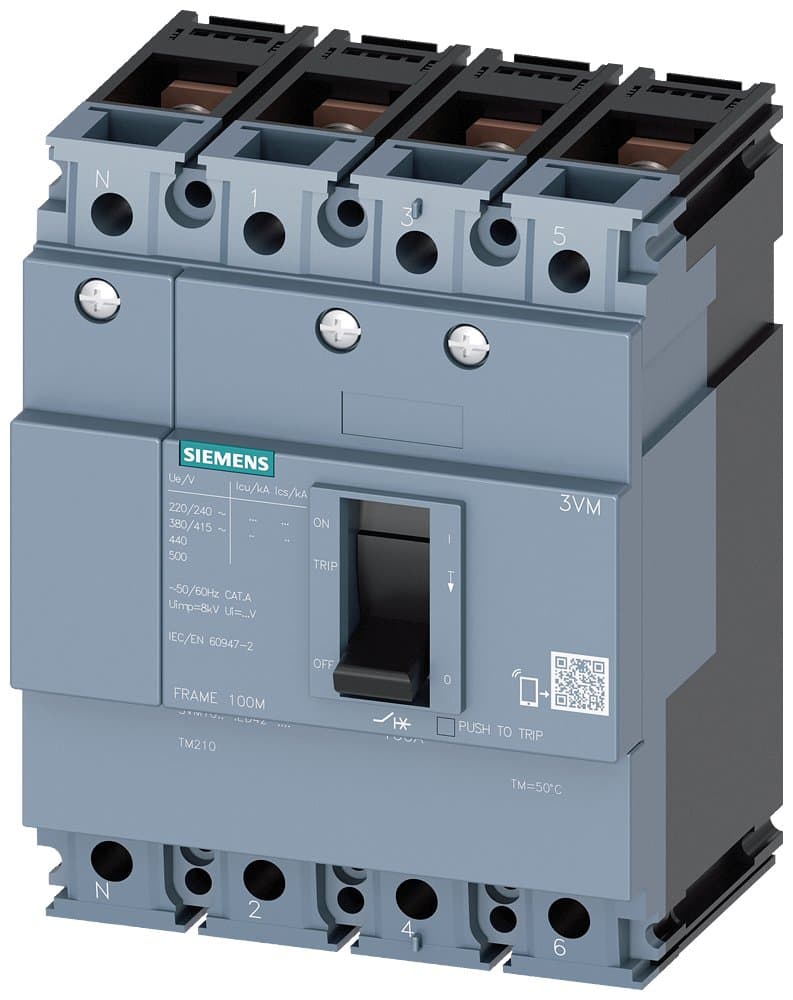

| Model Number | 3VM1096-4ED42-0AA0 |
Specifications may be subject to change without notice
