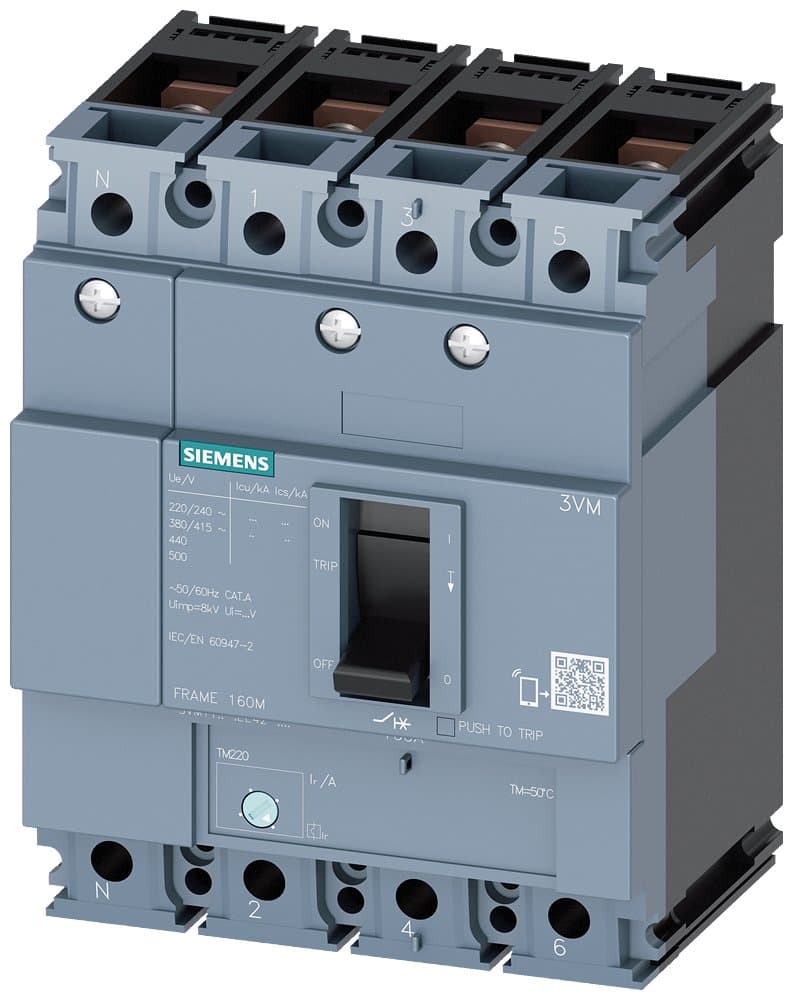

3VM1112-5EE42-0AA0
Product ID:226590
Updated: 2026/7/8
Key Features
- 1Ensure reliable high-performance line protection for diverse electrical applications.
- 2Utilize thermal-magnetic trip units for both overload and short-circuit safety.
- 3Adjust overload protection from 88A to 125A for precise customization.
- 4Install a compact design suitable for 1-pole to 4-pole space-efficient configurations.
- 5Meet stringent IEC safety standards for assured compliance and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1M160 R125 TM220 F/4P; Size 160; Rated Current 125A; Interrupting Rating M:55kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220 [L adjustable, I fixed] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 125 | Specifications: | 160 [8-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1112-5EE42-0AA0 |
Specifications may be subject to change without notice
