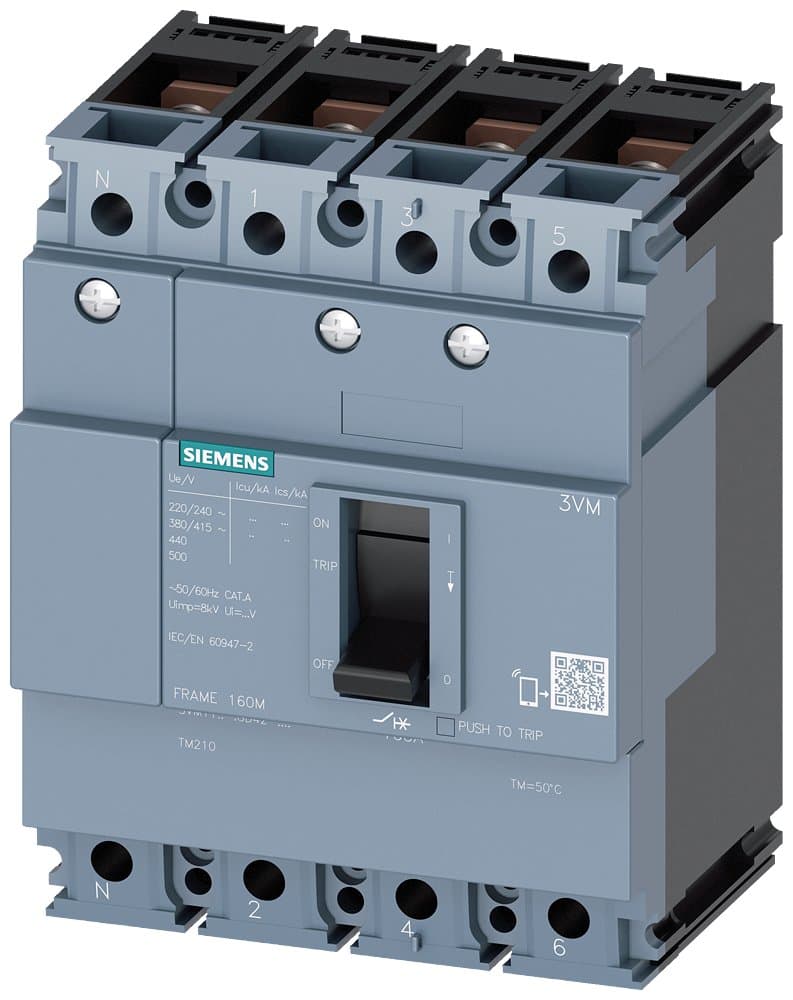

3VM1120-5GD42-0AA0
Product ID:99171
Updated: 2026/4/3
Key Features
- 1Ensure reliable operation with a 55 kA breaking capacity at 415V. 2、Protect electrical lines comprehensively using TM210 and FTFM technology. 3、Safeguard against overloads with a fixed 20A protection current setting. 4、Simplify installation in compact spaces with a 160 IEC frame design. 5、Meet international safety standards including IEC 60947-2 compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1M160 R20 TM210N F/4P; Size 160; Rated Current 20A; Interrupting Rating M:55kA; Trip Unit TM210N; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210N [LI fixed, with N-phase protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 20 | Specifications: | 160 [8-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1120-5GD42-0AA0 |
Specifications may be subject to change without notice
